Recycle PE PP Film Bag Washing Line HDPE LDPE Bottle Recycling Line

Product Description

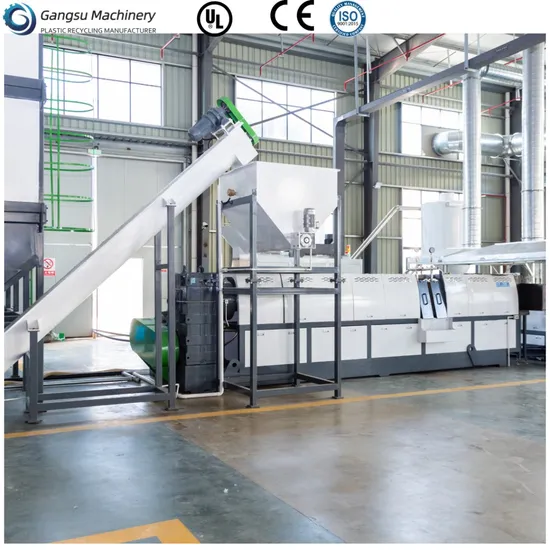

We provide efficient, reliable washing line equipment for the plastic film recycling industry. Whether your raw material is polypropylene (PP), polyethylene (LDPE/LLDPE) or any other plastic film, our complete line of plastic film washing equipment will allow you to process loose or bulk plastic film into clean, dry plastic flakes for pelletizing or sale. Material available for processing
Product Parameters

Output Capacity(kg/h)	Installment Power(kw)	Floor Space(m)	Operators	Water Consumption(m/h)
300	500	350	4	3
500	620	460	6	4
1000	700	500	6	5

Recycling Process
Product Description
Belt conveyor Used to convey film waste materials to the crusher in the back-end equipment
Plastic crusher Used for crushing film or woven bag strapping into 80mm-120mm pieces
Screw feeder This equipment is used to transport the rinsed material to the rear equipment
Floating tank It is used to rinse the material for the first time to separate the sediment impurities in the material
Friction washer Used to rinse the rinsed material with high pressure water, high speed scrubbing and conveying to the rear equipment
Moisture removal/drying systems Materials dewatered via squeeze dryers or dewatering machines. We'll assess your needs and guide in selecting the suitable method.
Silo For storage of clean and dry plastic film flaks
Control cabinet For controlling the washing line and observing the operation of each piece of machine
