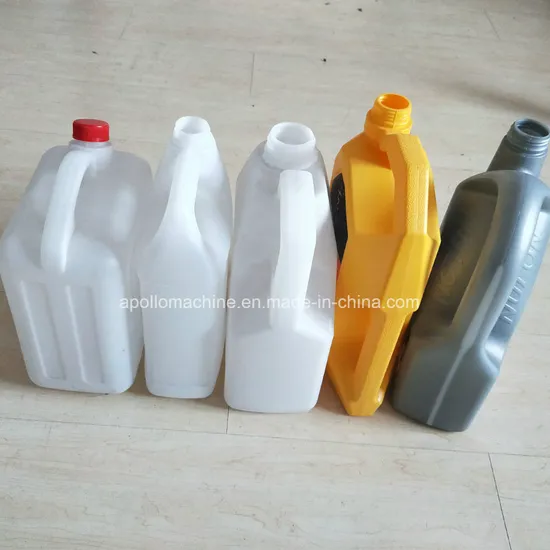

Different Shape Plastic Oil Bottle Blow Molding Making Machine

Product Description

Tanks Extrusion Blow Molding Machine ABLD120:
ABLD150 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 3000L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 3000L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head, 100 point parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
(8)Equipped with germany servo system , can save more than 40% power and very stable .
Technical Parameters: ( ABLD120)

Max. Product volume	1000 liters
Screw diameter	150mm
Screw L/D ratio	33L/D
Screw drive power	132KW
Screw heating capacity	36 KW
No.of heating zone	6 zones
Output of HDPE	620-840KG/H
Oil pump drive power	75 KW
Clamping force	1800 KN
Max.size of mold	1730 X 2200mm
Mold stroke	1000-2700mm
Max.die diameter	1000mm
Blowing pressure	1.2 mpa
Air Volume	6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	240L/MIN
Size of Machine	11.5x7.5x8m
Weight of machine	72 ton

WARRANTY:
We warranty the quality of this machine for 12 months , if there is any problem with the machine ,or any main parts are broken, we will repair it or replace new for free. TRAINNING:The seller should train two or three operating man for free. (Travel and hotel is by buyer's expenses.) INSTALLATION AND TESTThe buyer should place the machine to the right position and inform the supplier after the machine reach the buyer's factory. The seller will send the engineer to test run the machine until it is running in normal state. The buyer will bear his round-trip air tickets, accommodation, and hotel and so on in BUYER'S side. Besides,the buyer will pay 100USD/day/person for technology fee. VALIDITY OF OUR OFFER:The offer is valid for any order placed within a period of 30 days. Unless otherwise stated, all conditions and terms are based on this list.
The offer is offered for the buyer's need in selecting and not act as the enclosure of contract. The contract is the only standard.

---
