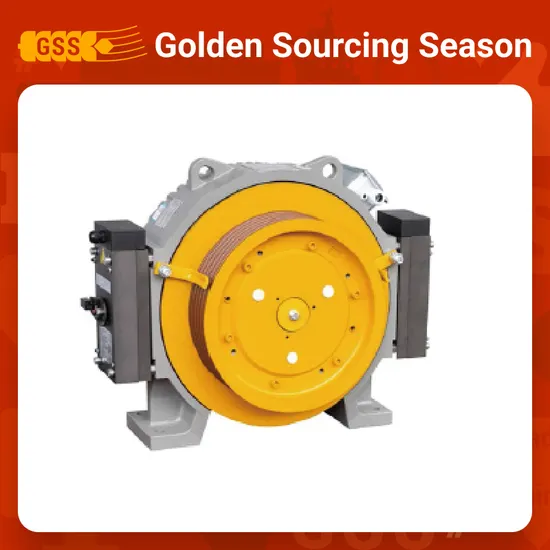

320kg-630kg Elevator Motor Permanent Magnet Synchronous Gearless Traction Machine

Product Description

1350kg-2000kg elevator motor permanent magnet synchronous gearless traction machine Product Description
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
Product Parameters

Spec.	Load (kg)	Elv.Speed (m/s)	Roping	Power (kW)	Voltage (V)	Current (A)	SheaveDlam (mm)	Sheave Groove (mm)	Speed (r/min)	Freg (Hz)	Poles
320-0.5	320	0.5	2:1	1.1	220/380	7/4	320	3xΦ8x12	60	12.0	24
320-1.0	320	1.0	2:1	2.2	220/380	5	320	3xΦ8x12	119	23.8	24
320-1.5	320	1.5	2:1	3.4	220/380	8	320	3xΦ8x12	179	35.8	24
320-1.75	320	1.75	2:1	3.9	220/380	16/9	320	3xΦ8x12	209	41.8	24
450-0.5	450	0.5	2:1	1.4	220/380	9/5	320	4xΦ8x12	60	12.0	24
450-1.0	450	1.0	2:1	2.7	220/380	7	320	4xΦ8x12	119	23.8	24
450-1.5	450	1.5	2:1	4.1	220/380	11	320	4xΦ8x12	179	35.8	24
450-1.75	450	1.75	2:1	4.8	220/380	11	320	4xΦ8x12	209	41.8	24
630-0.5	630	0.5	2:1	1.9	220/380	13/7	320	5xΦ8x12	60	12.0	24
630-1.0	630	1.0	2:1	3.9	220/380	10	320	5xΦ8x12	119	23.8	24
630-1.5	630	1.5	2;1	5.8	220/380	16	320	5xΦ8x12	179	35.8	24
630-1.75	630	1.75	2:1	6.8	220/380	16	320	5xΦ8x12	209	41.8	24

Company Information
Certifications
World Exhibition
Our Elevator Showroom
Our Team
Packaging & Shipping
FAQ 1. Price
Re: please send us inquiry from made in china, we will quote to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.

2. Payment term
Re: T/T or L/C at sight.

3. Installation&Maintaining
Re: We will send installation&maintaining manual along with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

---
