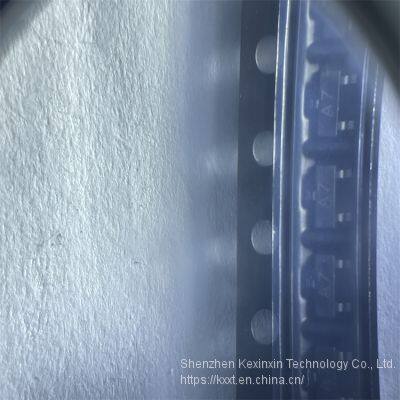

BAV99,235 Nexperia Diodes - General Purpose, Power, Switching BAV99/SOT23/TO-236AB

Product Details

Product Description

Product Description
Factory
Mfr. #:
BAV99,235
Manufacturer: Nexperia
Product Category: Diodes - General Purpose, Power, Switching
RoHS: Details
Product: Switching Diodes
Mounting Style: SMD/SMT
Package / Case: SOT-23-3
Peak Reverse Voltage: 100 V
Max Surge Current: 4 A
If - Forward Current: 215 mA
Configuration: Dual
Recovery Time: 4 ns
Vf - Forward Voltage: 1.25 V
Ir - Reverse Current: 500 nA
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 150 C
Packaging: Reel
Packaging: Cut Tape
Packaging: KXXReel
Brand: Nexperia
Height: 1 mm
Length: 3 mm
Product Type: Diodes - General Purpose, Power, Switching
factory pack quantiy: 10000
Subcategory: Diodes & Rectifiers
Type: Switching Diode
Width: 1.4 mm
Part # Aliases: 933215370235
Unit Weight: 0.001058 oz

---
