Factory Manufacturers Concrete Machinery Cement Pump Trailer Concrete Pump for Sale

Product Description

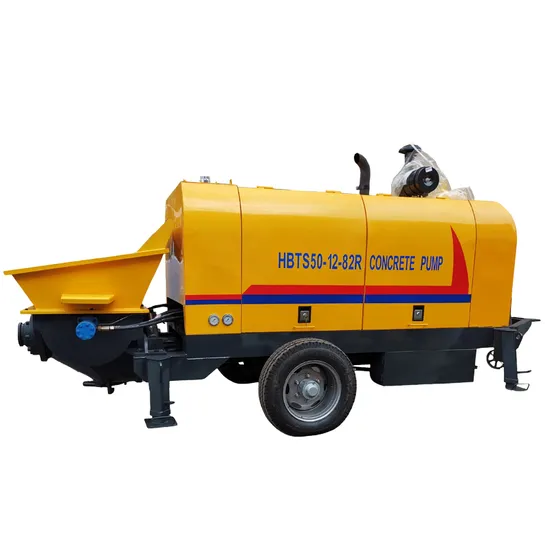

Diesel /electric mobile concrete pump for construction machinery
The concrete pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction,electric power and other energy source facilities and so on.
HBS/JBS series concrete pump adopt electric motor for power source, and HBTS/JBTS series pump adopt diesel engine for power source.
Product Details

Model			HBS/HBTS40	HBS/HBTS50	HBS/HBTS60	HBS/HBTS80
Max. Theoretic capacity		m3/h	40	50	60	80
Max, Theoretic pressure		Mpa	10	12	12.5	15.7
Motor/Diesel engine power		kw	45/66	55/84	90/129	110/176
Max. Theoretic distance	Vertical	m	120	150	200	250
	Horizontal	m	250	300	500	800
Disribution valve type		--	S valve
Hydraulic oil circuit type		--	Oper Circuit
Specification of concrete cylinder		mm	Ø160x1000	Ø180x1200	Ø200x1800	Ø200x1800
Specification of main oil cylinder		mm	Ø100x1000	Ø125x1200	Ø140x1800	Ø140x1800
Oil tank capacity		L	300	300	420	420
Hopper capacity		L	600	600	600	600
Max. Aggregate diameter		mm	Slick scree: 30 Scree: 20	Slick scree: 40 Scree: 30	Slick scree: 50 Scree: 40
Dimension (LxWxH)		mm	4500×1750×1600	4800×1800×1650	5800×2000×1750	5800×2000×1800
Overall weight		kg	3200	3500	5500	5800
pulling speed		km/h	≤8

Packaging & Shipping



Certifications


Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
FAQ
Q: Are you trading company or a source factory?
A:We are factory.We mainly design and manufacture concrete equipment
(concrete batching plant, concrete pump)
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
Q: What about the delivery time?
A:Usually 15-20 days after receving the deposit.
Q: What's your after-sale service?
A:18 months warranty for main parts since departure.
On-site installation, debugging, workers training. Make sure that
your workers operate properly and know daily maintenance well.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us.
Also on-site technician service available as request.

---
