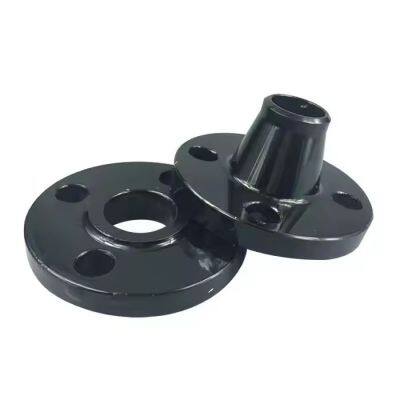

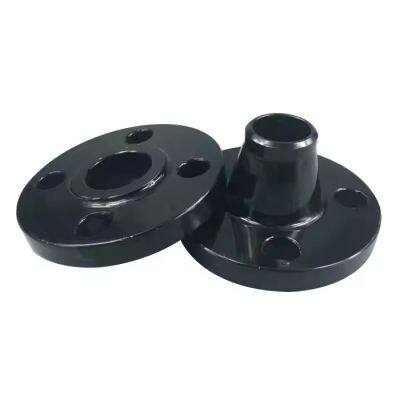

| Steel Flanges | ||
| Material | Carbon steel | ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH,Q235 |
| P250GH, P280GHM 16MN, 20MN ,20# | ||
| Stainless steel | ASTM A182, F304/304L, F316/316L | |
| Alloy steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91etc. | |
| Standard | ANSI | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| JIS | 5K Flanges-20K Flanges | |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| GB | 6Bar10Bar16Bar25Bar40Bar | |
| SABS | T1000/3 T1600/3 T2500/3 T4000/3 | |

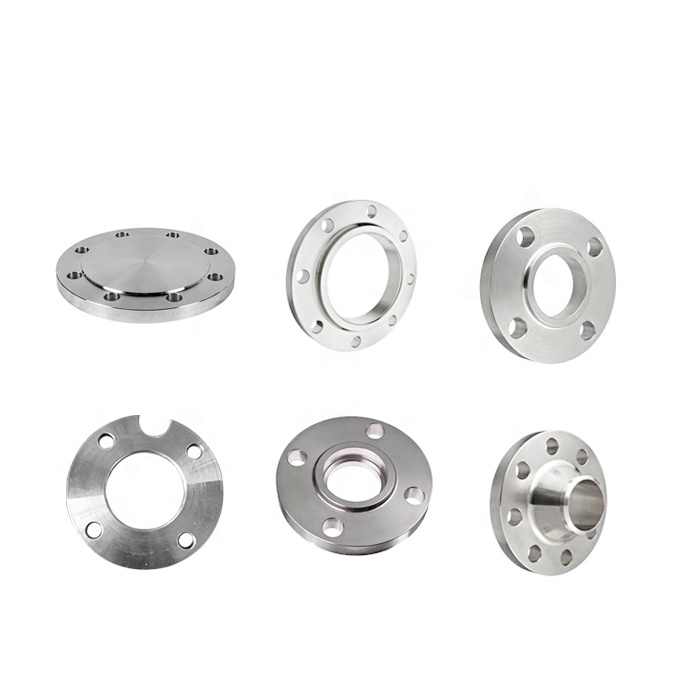

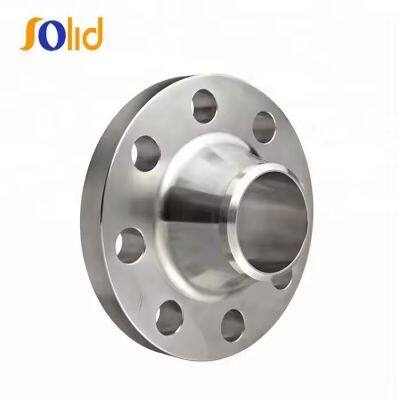

| TYPE | 1.Welding neck Flange 2.Slip on | |

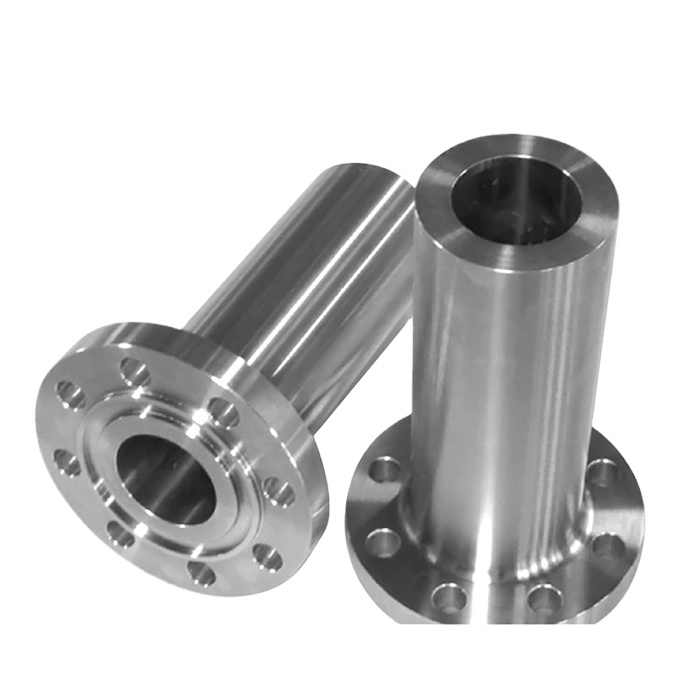

| 3.Blind flange 4.Long welding neck flange | ||
| 5.Lap joint flange 6.Socket welding | ||
| 7.Threaded flange 8.Flat flange | ||
| Surface | Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized | |
| Connection | Welding, Threaded | |
| Technical | Forged, Casting | |
| Size | DN10-DN3600 | |
| Package | 1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
