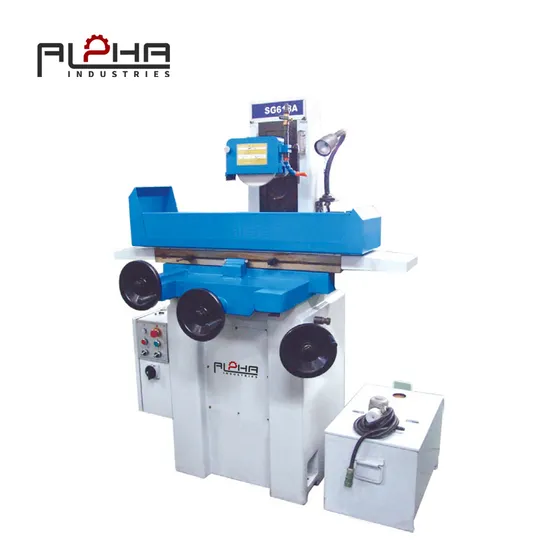

Automatic Surface Grinder Sg618A/ Sg818A for Smooth Finishing and High Efficiency

Product Description

Product Parameters

Model No.	Unit	SG618A	SG818A
Max. width to be ground	mm	165	220
Max. length to be ground	mm	470	470
Max. height to be ground	mm	350	350
Work table size	mm	155×460	210x450
Permanent magnetic chuck size	mm	150×400	200x450
Max. longitudinal travel	mm	500	500
Max. cross travel	mm	185	240
Max. distance from spindle to table surface	mm	450	450
Feed of vertical handwheel		1per rev.	1per rev.
Grinding wheel size(ODxWxlD)	mm	200×13×31.75	200x13x31.75
Spindle speed	r/min	3450(60Hz)2850(50Hz)	3450(60Hz)2850(50Hz)
Power of spindle head	kw	1.5	1.5
Max. load capacity	kg	97	128
Packing size	r/min	1340×1120×1930	1400x1120x1985
N.W.	kg	720	800

Standard Accessories

wheel	balancing arbor	hoisting set
spanner	wheel chuck	wheel dresser
levelling screw and block	tool box and special wrench	halogen lamp
coolant system

Optional Accessories

permanent magnetic chuck	dust collector	wheel balancing stand
cooling and dust collecting equipment

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
