Turnkey Project Automatic Carbonated Drinks Can Filling Production Line

Product Description

Pop can sealing machine:
As environmental packing meteria, aluminium can is going to be popular in beverage packing market, YFFY series are suitable for sealing/capping for all kinds of triplet aluminium can.
Description:

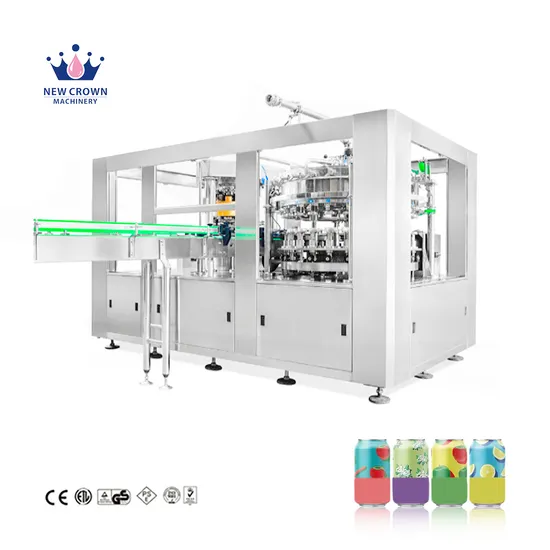

The 2 in 1 can filler and sealer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas containing drink in aluminum cans and PET cans. The filling way is balanced pressure. It adopts the automatic PLC touch screen control system, and the speed can be regulated infinitively as customer requirements within the scope. It is set with 36 filling heads and 6 sealing heads. The filling valves are adopted special for filling gas drink. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. It is full automatic and advanced in construction, steadily in performance, safe in operation, easy in maintenance, high in production efficiency. The filler is the ideal choice for drink factories of small and middle size.
Working process:
After get through the power and gas drink sauce, touch the touch screen to start the main machine, cans after washing come through the chain conveyor to the can filler and sealer, when can face to the filling position, it run into the rotary cam and rasied by the cam to the filling mouth, the filling valve goes into the can, then filling machine inducts the machine to filling the gas drink. After turning a round and filling gas drink reaches a level, cans will go down by cam falling, and go out through the outing wheel, at last they will be conveyed to the can sealer by the chain conveyor for sealing.
The filling head is made up of charge valve, filling valve and muffler. It is though the operating valve on the filling tank, the centering device controlled by cylinder, the discharge valve and vacuum valve to realize the filling.
The bottles will be taken into filler by conveyor, the dia plate will turn each can to be put on standing pole, with driven energy of motor, the standing pole will go up and down as main axis, on the way cans go up, the gas injection valve will be opened, CO2 will be in charged into bottles to take out air. When the bottles were fulfilled with CO2, the pressure balance is created between bottle and liquid tank, at the meantime, bottle will go up to press can mouth closely to filling head, filling value open and start to fill, when the can mouth leave the filling head, filling stops.
Sealer:
1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
2, Energy saving model, one motor can process all actions;
3, Full sealing effect make sure to be suitable for liquid packing can;
4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
5, Twice sealing tech to make well sealing effect, no leakage;
Technology Parameter

Model	BCGF12-1	BCGF12-4	BCGF18-4	BCGF24-4	BCGF30-4	BCGF36-4	BCGF40-6
Speed	1000-1500CPH	4000CPH	6000CPH	9000CPH	12000CPH	15000CPH	24000CPH

Power: 1.5kw
Overall dimensions: 1200*720*1900
Weight: 650

---
