Drinking Seawater Desalination Machine Osmosis RO Filtration Purifying Purification System Price Water Desalination Treatment Machine

Product Description

well salt water reverse osmosis borehole brackish water saltwater ro Water Treatment machine

60m3/hr filters with reverse osmosis desalination system

3000L/hr, 5000L/hr double stage RO
Containerized or solar powered for Option
Product Description Solar powered containerized salt sea water ro desalination plant price seawater desalination system water desalination machine Source water: direct seawater or drill salt water,borehole water
Purpose: For drinking water, irrigation or other industrial processes purpose.
Why choose containerized seawater desalination ? Containerized desalination plants have many advantages over built-in plant room installations:
· Plug and play unit
· Quick installation
· Limited civil work (only container foundation)
· Small foot print
· Easy transportation
· Mobile: useful for construction sites
· Turnkey delivery: piping, cables, air conditioning

Features
Containerized RO seawater desalination plant system feature:
Desalination plant in insulated (20 or 40 ft) containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a "plug and play" desalination system supply.
The containerized SWRO plant will be mounted with one side door, one inlet/outlet (terminal point), one side door and floor drainage.
The container can be air cooled on request. The Air condition is a split-unit and the outdoor part will be placed next to the container.
Haiyuan provides all kinds of pre-treatment required before SWRO, according to source water analysis and process requirements.
Containerized RO seawater desalination plant system Size / Standard
Depending on the plant size, containerized plant in 20 or 40 ft container(s) are available.
Containerized swro serivces


Product Parameters

Below is 20GP container capacity paramete
Model	Membrane model*qty	Capacity m3/D	Weight/kg	Operating Pressure/Mpa	Power
HYSW-20GP-20	4040×8	20	2800	4.0-6.5	220V-440V/ 50Hz-60Hz
HYSW-20GP-26	4040×10	26	2860	4.0-6.5
HYSW-20GP-30	4040×12	30	2920	4.0-6.5
HYSW-20GP-40	4040×16	40	3030	4.0-6.5
20GP Container-frame: 20 ft according to ISO- standard (5.85x2.23x2.15 meter).
·suit for long-distance transport ·easy installation ·save space for customers More detail need customized according user requirement.

Below is 40HGP container capacity paramete
Model	Membrane model*qty	Capacity m3/D	Weight/kg	Operating Pressure/Mpa	Power
HYSW-40HGP-60	8040×6	60	4900	4.0-6.5	380V-440V /50Hz-60Hz
HYSW-40HGP-80	8040×8	80	5050	4.0-6.5
HYSW-40HGP-100	8040×10	100	5150	4.0-6.5
HYSW-40HGP-120	8040×12	120	5230	4.0-6.5
HYSW-40HGP-150	8040×16	150	5530	4.0-6.5
Container-frame: 40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter).
·suit for long-distance transport ·easy installation ·save space for customers More detail need customized according user requirement.

We also can customized vary difference flow rate for user.

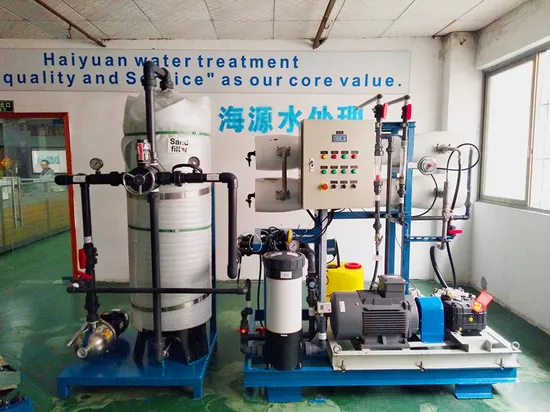

Seawater desalination machine
Large scale RO water machine

Each part function of the drinking water purification system
S/N.	Commodity name	Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump (feed water pump)	Provide needed pressure for every pretreatment filter	We can provide CNP pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.	We use China brand or WAVE CYBER brand
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.	We use China brand or WAVE CYBER brand
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling	We use China brand or WAVE CYBER brand
6	Antiscalant dosing system or PH regulating system	Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range.	Italy SEKO dosing pump or German Prominent
7	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm	Stainless steel housing or PVC housing
8	High pressure pump	Provide needed working pressure for RO system, ensure production capacity of pure water.	CN pump
9	RO(reverse osmosis) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.	RO membranes USA Filmtec Dow
10	CIP cleaning system	Cleaning RO membranes with chemicals	CNP pumps
11	Sterilizing device	UV sterilizer or ozone generator	BNP ozone
			machine, USA
			Hanovia UV bulb

Related SWRO
Certifications


Company Profile

exbition
Case
Buying Guides
In order to make the quote best fit your demand, kindly confirm as below: 1- Untreated water: from well water(send water test report),seawater or other? 2- Treated water purpose: Meet city tap water standard for humandaily use(TDS less than 500ppm) or other purposes? 3- Outpu capacity: How many liters/gallons per hour do you need? 4- Will the power supply 380v/50hz/3ph or others there? I would like to introduce our company HaiYuan Water Treatment CO.,Limited. Our advantages: --We can give you what you the ideal price and quality. - We are dedicated in water treatment since 2006 - Export experience over 100 countries, familiar with vary water quality. - Customized water treatment solution for varied industries - ISO9001 quality certification and CE certification & OEM service available.
Send us inquiry to get more info. Thanks! Contact Us now desing differenct desalination machine Sherry
