220V/380V Polipasto Electrico De Cadena 5t Con Carro Electrico

Product Description

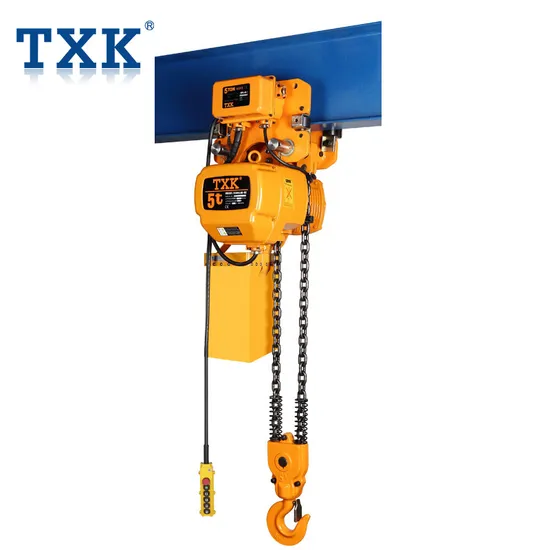

220V/380V Polipasto electrico de cadena 5t con carro electrico
Descriptions:
0.5~50 ton lifting capacity With upper hook (fixed) or with trolley Single/Double speed option Shell: aluminum alloy Chain: high quality G80 Chain container: canvas / iron Gear & chain wheel: alloy steel + heat treatment Hooks: heat forging+heat treatment Chain diameter: 6.3~11.2mm (as per different capacities) Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed), Standard chain length: 3m (can be customized) Power specification:200~690V,50/60HZ,3 Phase Safe voltage:24V/36V/48V Button switch:2/4/6/8 buttons option Insulation grade:F class Protection class: IP55 Working group:M4 Working temperature: -40ºC ~ +40ºC OEM acceptable Customized logo acceptable Package: plywood case Warranty: 2 years for mechanical parts, 1 year for electric parts
Parameters:

Single Speed					Technical Parameters
Model	SSDHL
	0.5-01S	01-01S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
Capacity(t)	0.5t	1t	1.5t	2t		2.5t	3t			5t
Lifting Speed(m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.2	2.7
Motor Power(Kw)	0.8	1.5	3.0	3.0	1.5	3.0	3.0	3.0	1.5	3.0
Rotation Speed (r/min)	1440
Insulation Grade	F
Power Supply	3P 220V ~ 690V
Control Voltage	24V/36V/48V
No. of Chain	1	1	1	1	2	1	1	2	3	2
Spec. of Load Chain	ø6.3	ø7.1	ø10.0	ø10.0	ø7.1	ø11.2	ø11.2	ø10.0	ø7.1	ø11.2
Net Weight(Kg)	47	61	108	115	73	115	122	131	85	151

Dual Speed					Technical Parameters
Model	SSDHL
	0.5-01D	01-01D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
Capacity(t)	0.5t	1t	1.5t	2t		2.5t	3t			5t
Lifting Speed(m/min)	7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.41.8	4.5/1.5	2.4/0.8	2.7/0.9
Motor Power(Kw)	0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Rotation Speed (r/min)	2880/960
Insulation Grade	F
Power Supply	3P 220V ~ 690V
Control Voltage	24V/36V/48V
No. of Chain	1	1	1	1	2	1	1	2	3	2
Spec. of Load Chain	ø6.3	ø7.1	ø10.0	ø10.0	ø7.1	ø11.2	ø11.2	ø10.0	ø7.1	ø11.2
Net Weight(Kg)	54	74	144	150	86	148	159	168	102	184

Company Profile: TXK was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS, CE certified, serving all spheres of industry in the world.
Our brand TXK is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.
TXK will never stop being as an innovation manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.

---
