Machine for Shaping Paper Shells with Heat Heat Shaping Equipment for Paper Shell Production Paper Shell Molding Machine with Heat Shaping

Product Description

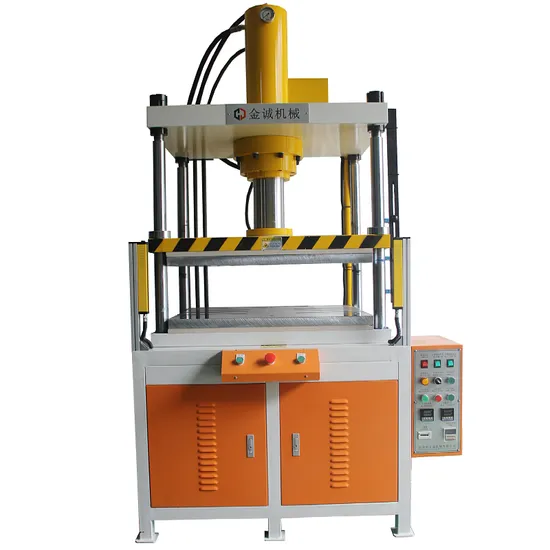

Equipment structure features:
1. The equipment is composed of the main engine, hydraulic transmission system and electrical control system, using hydraulic power, speed and pressure are high stability.
2.. The equipment structure adopts four columns and three plates, the guide sleeve is a specific type of high guidance accuracy, and the three plates are precision machining.
3. The cylinder adopts the self-developed fast letter cylinder, the characteristics of the cylinder are: first fast empty line drop → buffer feed → rapid recovery, stable performance, small motor power demand, low oil temperature, using a special oil return design, the work can be automatically closed loop design, improve the safety factor.
4. The main oil tank is a steel plate welded structure, which should be pickled, passivated, anti-rust treatment and leak-proof test before assembly. The main tank is equipped with a level gauge and a tank cleaning hole is opened on the side to facilitate the cleaning of the tank, and a filter is installed on the top.
5. The machine is equipped with upper and lower temperature control, which can switch the thermostat or adjust the temperature size according to the actual needs, in line with the temperature requirements of the copper pipe, humanized design, in line with the actual needs of production.
6. The upper and lower templates can be heated, the heating rate within 130 degrees is greater than 15 ° C /min, the template heating temperature setting range: room temperature ~ 300 ° C;
7. Heat the ring temperature of the device to 250°c for no more than 20 minutes
8. The machine can be optional: special treatment of hot plate can be selected (such as heat treatment, hardening, etc.), the installation of lighting line of sight is more bright, the installation of display screen, electronic ruler, pressure sensor, cooling device and so on.
Scope of application:
Widely used in a variety of PV,PE PC, FPC, PET, panel printing and other film switch, pot, film panel punching convex hull, copper pipe, heating pipe, heating pipe flattening and so on. As well as die casting industry, new energy industry of aluminum alloy, magnesium alloy, zinc alloy, automotive backplane, car die casting parts of the heat shaping, and paper support of the heat shaping (shaping) and other processes, some need to heat molding products. It is the application equipment of the vast electronic industry, plastics, home appliances, automobiles, die-casting and so on.

---
