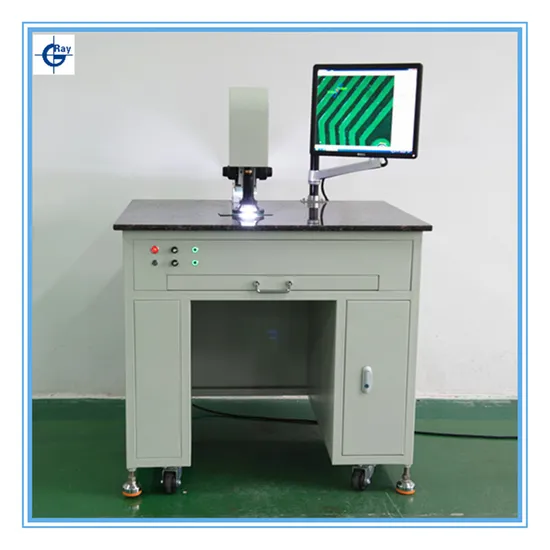

Width Measurement Machine

US$6,000.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RAY-LW02
Measurement Object
Length
Precision Measuring Device
Precision Measuring Device
Resolution
0.70~5.20μm/Pixel
Measure Method
Semi-Automatic
Range
0-780mm
Transport Package
1 Set/ Wooden Case
Specification
960× 760× 1400mm
Trademark
Ray Shine
Origin
China
HS Code
9031499090
Production Capacity
15 Set/ Month

Product Description

Technical Parameter:
Item parameter
Model RAY-LW-02
Resolution 0.70~5.20μm/pixel
Electronic magnification 70x~400x
Optical magnification 0.7×~4.0× continus adjustable
Light source LED circle light
LED red positioning
CCD high sense CCD
Max measurable board width 780mm
Sight arrange 0.53mm×0.4mm~3.4mm×2.5mm
Appearance dimension(without computer) (L×W×H)
Weight(exclude computer) 145kg
Power supply 220V~±10%)/50Hz
Operation temperature 0ºC~40ºC
Usage
This machine is mainly used to measure the widths of inner and outer range of semi PCBs after etching (before solder masking). In addition, the distance between two lines, distance between holes and edge and diameters of different holes and arcs can also be measured.
Expanding usage:
it can also be used to measure widths of IC wafer, thickness of films, LCD boards, etc.
Company Introduction
Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film researching, manufacturing, and selling and technology support.
FAQ:
1. The machine use electricity ?
----Yes, need electricity
2.The measuring data can export ?
----Yes, the software can export the data sheet into excel file
3.How can i fine the place which i want to measure?
---You can use the red point to locate the point.
3.What's your nearest port?
---Shenzhen port
Packing and Shipping
Packing Method:
Standard wooden package
Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
