China Manufacture Eyh Series Two-Dimensional Motion Mixer

Product Description

China Manufacture EYH Series Two-Dimensional Motion Mixer Description:
working principle:
The two-dimensional mixer is mainly composed of three parts: the drum, the swing frame and the frame. The rotating drum is mounted on the swing frame and is supported by four rollers and axially positioned by the two retaining wheels. Among the four supporting rollers, two of the driving wheels are dragged by the rotating power system to rotate the rotating drum. The swing frame is driven by a set of crank swing mechanism, the crank swing mechanism is on the frame, and the swing frame is supported by the bearing assembly on the frame.
Performance characteristics:
The drum of the EYH two-dimensional mixer can perform two movements at the same time, one for the rotation of the drum and the other for the swing of the drum with the swing frame. The mixture is rotated, inverted, and mixed with the drum in the drum, and the mixing motion of the left and right back and forth occurs with the swing of the drum. Under the joint action of the two movements, the material is fully obtained in a short time. the mix of. The EYH two-dimensional mixer is suitable for the mixing of all powder and granular materials.
China Manufacture EYH Series Two-Dimensional Motion Mixer Specification:

Model/Specification	Volume (L)	coefficient of charge	Loading capacity (kg)	Dimension (mm)						Power (kw)
				A	B	C	D	M	H
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	0.5	1800	2700	2290	300	1440	3530	3000	7.5	5.5
EYH10000	10000	0.5	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	0.5	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	0.5	5000	3500	3000	360	2100	5000	4400	18.5	15

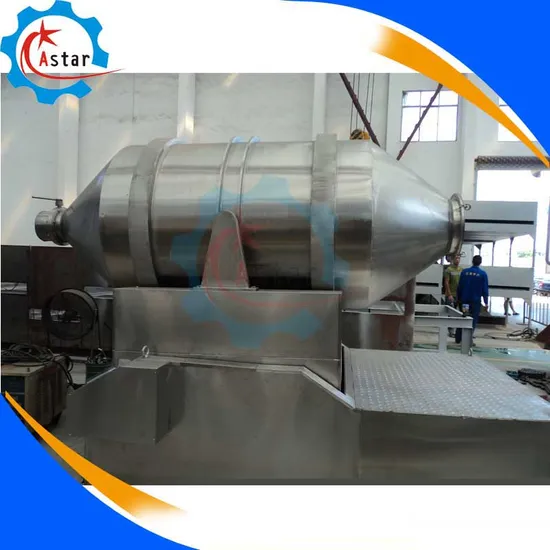

China Manufacture EYH Series Two-Dimensional Motion Mixer More Photos:
To know more China Manufacture EYH Series Two-Dimensional Motion Mixer , pls contact with us freely.

---
