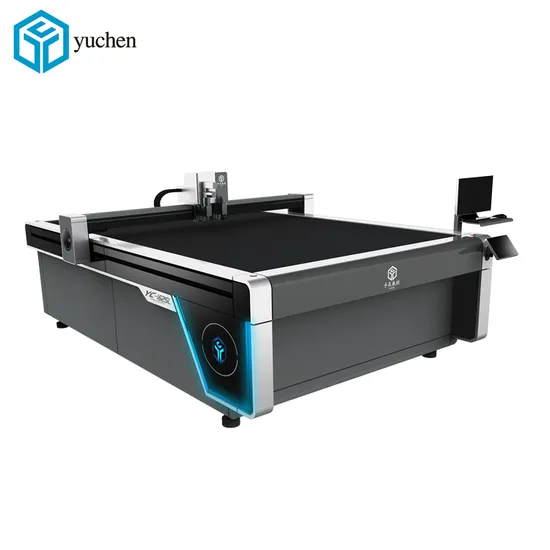

CNC Equipment Blade Packaging Box /Paper Board Cutter Machine From China

US$13,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YC-1625L
Condition
New
Control
Automatic
Application
Paper, Corrugated Board, Grey Card,Acrylic, Foam,etc
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
2500*1600mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month

Product Description

CNC equipment blade packaging box /paper board cutter from china
Model: YC-1625L Machine size can be customized
Brand: Yuchen
Applicable cutting materials: corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EVA, EPE and other similar materials
Functions: cutting, Creasing, V groove cutting
Equipments: creasing tool, V-cut cool, oscillating cutting tool
Parameter:
Model YC-1625L YC-1630L YC-1625A
Working area 2500×1600mm 3000×1600mm 2500×1600mm
Operation properties Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device Infrared adopted; sensitive response; safe and reliable
Maxi cutting speed 1200mm/s
Translational velocity 1500mm/s
Applicable materials corrugated board, honeycomb board, grey card, other paper board, acrylic, foam, EVA, EPE and other similar materials
Multifunctional head creasing tool, V-cut cool,routing tool, oscillating cutting tool
Cutting thickness 0.1-10.0mm(subject to the material cutting)
Cutting tolerance ±0.1mm
Transmission interface Ethernet
Transmission system Motor:Panasonic or Fuji
Linear rail:Hiwin
Fixed mode Vacuum absorb
Supply voltage AC 220V 380V±10%,50HZ
Rated power 11KW
