electronic yarn count system

Product Description

Product Description

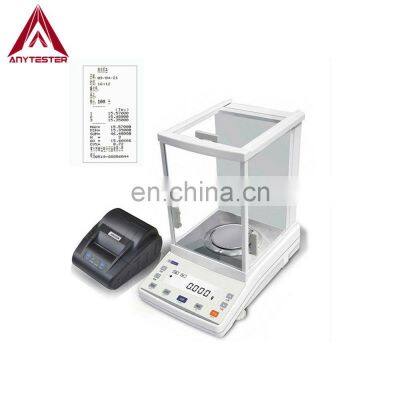

Product DescriptionHY0200 Electronic Count System consists of an accurate electronic balance with a capacity of 200 grams, connected by Bi-Directional interface with a powerful miniature computer. The included software automatically calculates total, average, minimum, maximum range, standard deviation and percent C.V. for any number of samples per test session and operates in most international raw silk and yarn denier testing yield.SpecificationModelHY0200Capacity200gPrecision0.001gTray diameter120mmResult displayD, Tex, Nm, Ne, OZ, g/m2, OZ/yard2, gData memory50 groupsPower supplyAC220V 50HzDimensions350×220×310mmWeight3kgDetails & Features★ Use import electronic balance to ensure the high stability, reliability, and fast to weight the specimen★ Fast test speed can test 200 samples in 10 min★ With the function of data protect when shut down, avoid missing the test data★ It’s widely used for raw silk, yarn, filament, etc.★ To show test result with different parameters, which includes testing time, operator name, D or dtex, average, etc.★ Software for detailed analysis of results by periodic reports and daily reports.★ Equipped with build mini printer to output report★ 8 units selectable: D, Tex, Nm, Ne, OZ, g/m2, OZ/yard2, gOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us

---
