2024 Hot Sale 0.8-4mm Thicknesssteel Angle Bar Roll Forming Machine

Product Description

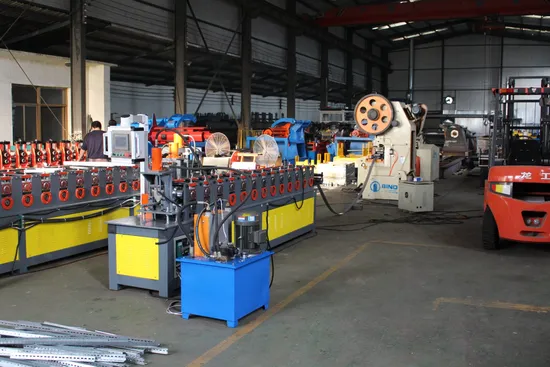

9. Suitable material to process Material: galvanized steel strip, galvalume steel strip; Thickness: 1.0mm - 2.0mm; Width: as per drawing. 10. Technique parameters of the main roll forming machine (1). Forming stations: 21; (2). Roller material: GCr15 steel with CNC machining; (3). Diameter of shaft: ¢80mm solid forged 45 #steel, quenching process; (4). Material of shaft: solid 45# steel with grinding process; (5). Frame of the machine: welded with 350H section steel; (6). Wall panel thickness: 20mm; (7). Forming motor power: 30KW; (8). Flying saw cutting; (9). Control system: PLC brand is DELTA from Taiwan; (10). Material leveling device; (11). Driving mode: double 2" chains; (12). Forming speed: 0-10m/min; (13). Power supply: 380V, 50HZ, 3 PHASES; (14). 80T punch with one set die and serve feeding 11. The Chart of Process Flow Manual Decoiler ---Leveling & Feeding Device --- Punch --- Main Roll Forming System --- PLC Control System --- Hydraulic Station System --- Cutting System --- Receiving Table

1. Guarantee
In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.
2. Installation
If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be caculated as per the time that shown on the fright tickets when our technician leaves China and arrives back to China.

---
