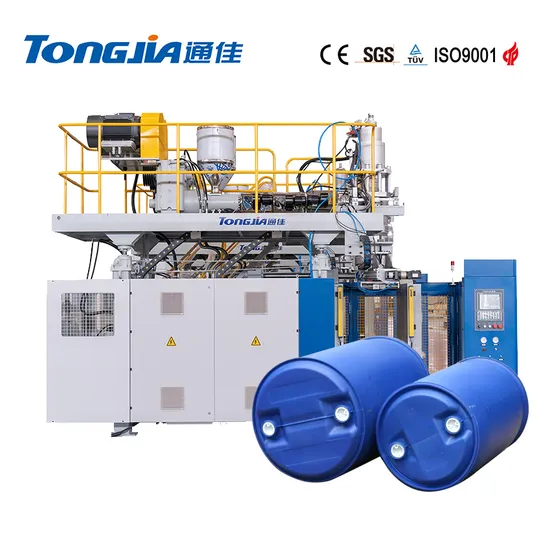

Tongjia 30L -160L Double Station Plastic Chemical Bucket Bottle Blow Molding Machine

Product Description

Tongjia TJ-HBD30L-160L series double-station blow molding machine can be customized according to the actual situation
of customers to meet various requirements of different customers. It is mainly used to produce various chemical barrels, civilian
barrels, medical packaging, road barriers. Through adjust machine parts, it can meet different needs of customers.
This machine control system adopts imported PLC+ European imported complete machine control system. Hydraulic system adopts
fully imported hydraulic valve + hydraulic servo control system. It's output if two times of single station machine, customers who require
large output can choose this model.

Configuration
Clamping system	Double work stations translation+ High-precision linear guideway
Extrusion system	Hardened face gear reducer+ Imported frequency inverter
Diesystem	Special steel center-feeding die
Hydraulic system	Allimported hydraulic valve, seal parts+ Electro-hydraulic proportional control.
Control system	Imported PLC + Imported Human-machine interface + PLC automatic temperature control module

Parameters
Specifications	Units	TJ-HBD30L	TJ-HBD160L
Material		PE.PP.ABS …	PE.PP.ABS …
Die quantity	Set	1	1
Machine dimension	M	5.0x8.0x3.5	8.0x10.0x6.0
Machine weight	Ton	20	45
Die-head
Accumulatorcapacity	L	4.4	13.8
Max.diameter of die	mm	300	400
Die head heating power	KW	26	38.6
Die head heating zone quantity	zone	3	3
Clamping Unit
Station		Double	Double
Clamping force	KN	240	700
Distance between platens	mm	400-900	700-1500
Mold platen size (W x H)	mm	780X700	1100X1400
Extruder unit
Screw diameter	mm	100	135
Screw L/D ratio	L/D	28	32
HDPE Plasticizing amount	Kg/h	180-300	400
Screw heating zone quantity	zone	5	6
Screw heating power	KW	23	48
Extruder driving power	KW	90	160
Power
Total power consumption	KW	163	284
Hydraulic drive power	KW	24	37
Cooling water consumption	m3/h	5	25
Cooling water pressure	Mpa	0.3-0.6	0.3-0.6
Air pressure	Mpa	0.8	0.8
Air consumption	m3/min	1	3

1.12 Hours----We will give you reply within 12 hours.
2.Pre-sale service----We provide your professional service in fluent English.
3.Delivery----1~3 months.
4.Free Design----Professional engineers, free designs.
5.Certificates----The third-party verification service provider.
6.After sales service----OEM service provide; Design service provide; Buyer label provided.
Why choose us?
1.Our factory was founded in 1953 and we are market-leader in this line in China.
2.In the plastic machinery field, we have more than 30 years of relevant experience.
3.Our products extend all over the national and over 90 countries and areas of the world.
4. Our spare parts are international famous brand components.
5. Engineering team provide you with the most suitable model towards your products.
6.We will send our engineers to your factory installation the machine and train your worker after the machine
arrive your factory.
7.We will offer our best price and quality and hope have a good cooperation with you.
8.Our machines run stable, high output and our technology from German. Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still
can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
