Product Description
| Product Name | Spray booth specification #VPB-SD98 |
| Outside Dimension (mm) | 7000×5350×3400 | Inside Dimension(mm) | 6900×3900×2650 |
| Front Door(mm) | 3000×2600(W*H) | Service door(mm) | 800×2000(W*H) |
| Total Power | 17kw |
| Cabin system | Front door | Sheet metal door, double side with PU insulated |
| Wall panel | 50mm rockwool sandwich panel, steel sheet thickness: 0.426mm |
| Ceiling panel | 0.8mm galvanized steel sheet |
| Basement | 300mm depth construction galvanized basement, full galvanized grids |
| Ramps | Two pieces 2000*750mm ramps |
| Door glass | 5mm tempered glass |
| Air make-up system | Air inlet fan system | 1 set 7.5kw turbo fan, fan model:DDF-630B, with one manual damper |
| Exhausted fan system | 1 set 7.5kw turbo fan, fan model: DDF-630B, with one manual damper |
| Air inlet capacity | 30000m3/h |
| Exhausted capacity | 30000m3/h |
| Exhausted ducting | six meters straight galvanized ducting and two 135 degrees elbows |
| Purification system | Pre-filter | G3 grade |

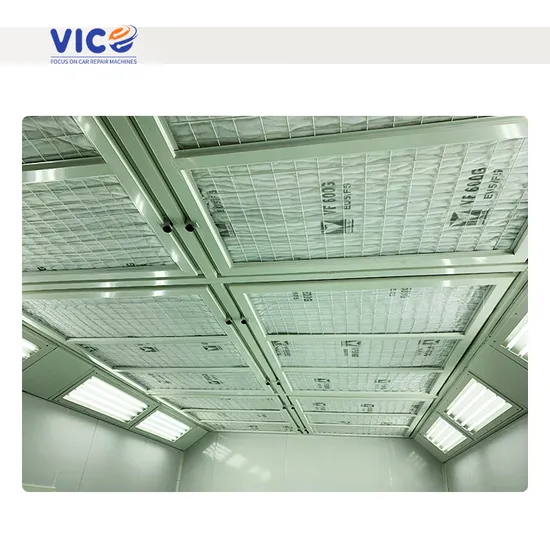

| Ceiling filter | 600G filter EU5 / F5 |
| Floor filter | Fiber glass filter |
| Exhausted filter | Fiber glass and carbon filter |
| Heating system | Heat Exchanger | SUS 304 200KW stainless heating exchanger |
| Heating burner | Riello G20 diesel oil burner (gas burner is for option) |
| Heating productivity | 20000Kcal/hour |
| Spray to baking switch | Pneumatic damper |
| Chimney ducting | 4 meters chimney ducting and one chimney elbow |
| heating temperature | Maximum 80ºC |
| fuel consumption | 6-8L/vehicle |
| Lighting system | Ceiling lighting | 8 Units, each 4 * 16.5W LED lamps. |
| Side lighting | 8 Units, each 4 * 16.5W LED lamps. |
| Illumination | 1200LUX |
| Control system | Switch controlling system | Spraying & baking switch, lighting switch, timer, temperature controlling switch, emergency stop, breakdown alarm, failure alarm,pressure gauge |
