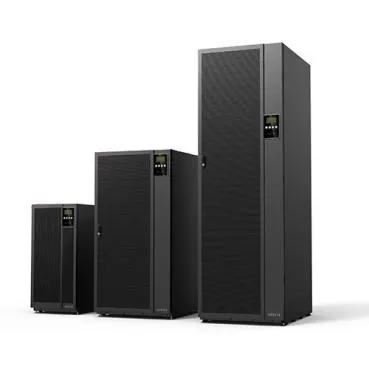

OEM High Frequency Single Phase UPS System 6 kVA Online UPS

Product Description

OEM High frequency single phase UPS system 6 kva online UPS

Specification parameters

phase

single phase grounding

capacity

1000VA/800W

2000VA/1600W

3000VA/2400W

6000VA/4800W

10000VA/8000W

input

INPUT VOLTAGE

100/110/115/120/127/VAC 200/208/220/230/240AC

208/220/230/240AC

Voltage range

55-150VAC or 110-300VAC50%load 85-140VAC160-280VAC100%load

110-300VAC50%load 176-300VAC100%load

Frequency range

40Hz~70Hz

46Hz~54Hz 56Hz~64Hz

Power factor

≥ 0.99 @100%load

output

Output voltage

100/110/115/120/127VAC 200/208/220/230/240VAC

208/220/230/240AC

Voltage range (battery mode)

±1%

Frequency range (synchronous correction range)

40Hz~70Hz 57Hz~63Hz

46Hz~54Hz 56Hz~64Hz

Frequency range (battery mode)

50Hz ± 0.25Hz 60Hz ± 0.3Hz

50Hz or 60Hz ± 0.1Hz

Peak factor

3:1

harmonic distortion

≤3%THD(Linear Load) ≤6%THD(Nonlinear load)

≤3%THD(Linear Load) ≤6%THD(Nonlinear load)

conversion time

AC to DC

0

Invert to bypass

4ms(Under standard conditions)

0

Waveform (battery mode)

Pure Xuanbo

efficiency

Mains mode

88%

88%

90%

92%

93%

Battery Mode

83%

85%

88%

90%

91%

battery

Standard machine

model No

12V / 9Ah

12V / 9Ah

12V / 9Ah

12V / 9Ah

number

2

4

6

16

20

16

20

Standard charging time

Charge to 90% in 4 hours

Charge to 90% in 9 hours

Maximum charging current

1A

1A / 2A

Charging Voltage

27.4VDC±1%

54.7VDC±1%

82.1VDC±1%

218.4VDC±1%

273VDC±1%

218.4VDC±1%

273VDC±1%

Long term machine

model No

Optional

number

2

3

4

6

8

6

8

1620

Maximum charging current

1A / 2A / 4A / 6A()

1A/2A/4A/6A(,6A16)

Charging Voltage

27.4VDC±1%

41.0VDC±1%

54.7VDC±1%

82.1VDC±1%

109.VDC±1%

82.1VDC±1%

109.4VDC±1%

273VDC±1%(20)

Display Description

LCD

Load size, battery capacity, mains mode, bypass mode, fault indication

Warning sound

Battery Mode

Ring every 4 seconds

Low battery

Ring every 1 seconds

overload

Ring every 1 seconds

error

Continuous sound

physical property

Standard machine

Size: D * W * H(mm)

282*145*220

397*145*220

421*190*318

369*190*688

442*190*688

net weight(KG)

9.8

17

27.6

61

74

66

76

Long term machine

Size: D * W * H(mm)

282*145*220

397*145*220

369*190*318

442*190*688

net weight(KG)

4.1

6.8

7.4

12

16

Usage environment

humidity

20-90%RH@0-40ºC(No frost formation)

Relative humidity 0-95% and temperature 0-50 ºC (without frost)

Relative humidity 0-95% and temperature 0-40 ºC (without frost)

noise

≤50dB @1

≤ 55dB @ 1 meter

≤58dB @1 meter

control

Intelligent RS-232/optional USB

Support for Windows ® 2000/2003/XP/Vista/2008, Windows ® 7/8, Linux and MAC

Optional SNMP

Power management supports SNMP management and network management

Our company offers variety of products which can meet your multifarious demands. We have many experience of power system and related power equipments, good relationship with famous customers such as ABB, Simens, GE, Sieyuan, TBEA, XD...Our supply products have advantage and quality assurance. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Business scope include: Electrical equipment, electronic products, instruments and meters, electrical and mechanical equipment and spare parts, computer software and ancillary equipment, intelligent equipment, automation equipment, wujinjiaodian, building materials, daily provisions, packaging materials, chemical raw materials and products (excluding hazardous chemicals and precursor chemicals and MCC) sales; Technical research and development, technical consultation, technical service and technology transfer in the fields of information technology, electrical technology and mechanical equipment; Enterprise management consulting; Computer graphic design; On-site installation and maintenance of mechanical and electrical equipment; Import and export of goods and technologies.
1.Q:What's your main products?
A: We provide professional Transformer Accessories/components, power supply and welding products.mainly focus on power transformer and energy scope.
2.Q Why chooses us?
A: Our resouce are focus and deep cooperation with top companies of power energy area.Supply with cost advantage and quality assurance.
3. Q:How can you control your quality?
A: Our factory have supply experience with top customers such as ABB ,SIEMENS,GE,TBEA,XD and so on, the quality can meet the power energy high standard requirements of quality; For each production processing, we have complete QC system for the chemical composition, physical and electrical properties.After production, all the goods will be tested according to related standards, and the ex-factory test reports will be sent along with shipment documents.
4. Q: Does your company accept customization?
A. Yes, we can accept OEM/ODM.
5.Q: Do you have the products instock?
A: Depends on your request,we have standard models in stock.Some special product and big order will be newly produced according to your order.
6. Q: What's your payment terms?
A: We usually accept all kinds of payment terms, T/T, L/C, Western union, Cash.
7. Q: What do you have for certificate?
A: :Quality Service Credit Certificate, Enterprise Credit Grade Certificate,Credit Operation Demonstration Unit Certificate, Quality Management System Certificate, etc.
8.Q:Can we visit your company?
A:Yes,for sure, you are welcome to visit our company.

---
