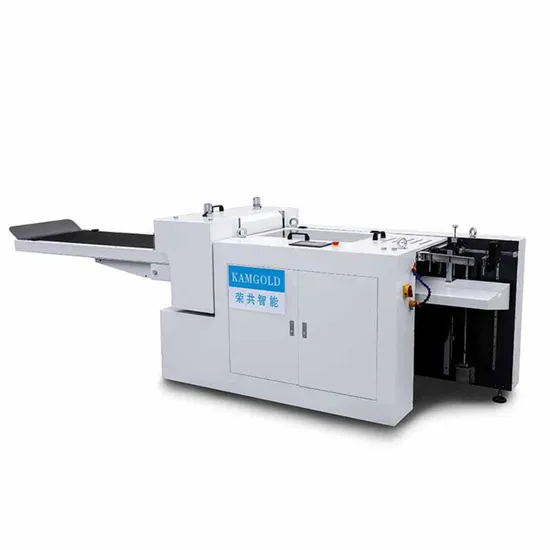

Fg-420 Automatic Rotary Die Cutter with Waste Stripping

Product Description

FG-420 Automatic Rotary Die Cutter with Waste Stripping
Product DescriptionFG-420 Automatic die-cutting waste discharge machine mainly for different shapes of hanging brand products and paper box products die-cutting, waste removal. It can realize die cutting, kissing cutting, punching , automatic feeding, receiving and waste cleaning. Can greatly improve production efficiency, reduce cost. When changing different products, there are visual page and quick handle operation, simple, fast and efficient.
Detailed Photos
Machine configuration and functions

No.	configuration and functions	Qty
1	Paper side positioning part	1 set
	Side gauge positioning
	10 Side gauge adjustment
	,,.Servo drive Side gauge
2	Electronic pre-specified bit system	2 set
	servo - driven positioning and paper - adjusting roller
	,,.High precision radio electric eye, to identify paper head .Not affected by the color of the printed paper.
	,Electric eye and servo linkage, high speed feedback adjustment of paper feeding position
3	Feeder	1 set
	Front feeder
	500mm Paper stack height 500mm
	Ultrasonic double check
4	Die cutting machine frame	1 set
	Simplex die-cutting frame
	Alloy-steel wallboard ensures the rigidity of the unit
5	Servo rotary die cutting unit	1 set
	,High strength alloy steel wallboard frame, thick and stable
	servo drive control die cutting group
	:,Servo rotary positioning die cutting: engraving roller and magnetic roller can be used
	Die cutting pressure regulator
	High hardness alloy bottom roller
6	Automatic waste removal system	1 set
	10 10 waste pressure cutters
	Finished material receiving and conveying wheel
	Waste collection
	,Paper blocking and jam alarm function
7	Finished product collection	1 set
	Independent servo-driven receiving platform
	,Adjustable speed, linkage with die - cutting main machine
	It has counting and fast separating function

Product Parameters

item	value
Warranty	1 Year
Type	Die Cutting Machine
Applicable Industries	Garment Shops, Manufacturing Plant, Printing Shops
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	PLC, Motor, Pump
Condition	New
Application	Food, Medical, Chemical, APPAREL
Packaging Type	Bags, Pouch
Packaging Material	Plastic, Paper
Automatic Grade	Automatic
Driven Type	Hydraulic
Voltage	220V
Power	5KW
Place of Origin	China
	Guangdong,Dongguan
Brand Name	KAMGLOD
Weight	1000KG
Dimension(L*W*H)	3000x1010x1300mm
Key Selling Points	Easy to Operate
Function	Cutting tags,boxes,cards
Machine type	Rotary Die Cutting Machine
Advantage	Easy Operation High Efficiency
Speed	4000pcs/h
Knife	Round Blade
Control System	PLC+Servo Motor+Touch Screen
Operation	Easy Automatic

Packaging & Shipping1. The packing is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.

Company Profile
Dongguan KAMGOLD Printing And Packaging Machine Co.,LTD(KAMGOLD Printing and Packaging Machinery Factory) founded in 2005,located in the pearl river delta industrial city Dongguan. Since its inception, we have been adhering to the "focus on professional" business philosophy, long-term production of various kinds of brands, tags, labels for the customer, post-press automatic production equipment.
After years of hard work, we have successively developed a fully automatic die-cutting waste removal machine, a fully automatic tag point baler, an fully automatic multi-head RFID labeling machine, an fully automatic tag threading machine, a fully automatic tag hole punching machine, and an automatic sticker. Double-sided tape machine, etc., has a number of patents, and has become a market-recognized manufacturer of post-press automation equipment. We are committed to providing customers with perfect postpress solutions, saves the manpower for your company, improve the quality of products, to create benefits.

FAQ1. who are we?We are based in Guangdong, China, start from 2019,sell to Domestic Market(57.00%),Southeast Asia(30.00%),South America(8.00%),South Asia(5.00%). There are total about 11-50 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?automatic hangtag threader machine,automatic hangtag drilling eyelet mahcine,automatic hangtag stripping machine,automatic packing machine,automatic RFID labeling machine4. why should you buy from us not from other suppliers?We are factory.5. what services can we provide?Accepted Delivery Terms: FOB,CIF,EXW;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T;Language Spoken:English,Chinese

---
