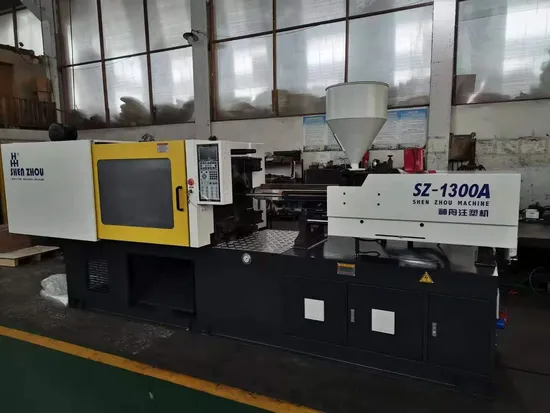

Professional Custom Plastic LDPE Bottle Cap Pet Preform Injection Molding Machine//Cycle Time 15s

Product Description

Screw diameter	mm	35	40	45
Screw L/D ratio	L/D	24	21	18.7
Shot weight	gram	158	206	260
Injection capacity	cm3	173	226	286
Injection pressure	Mpa	235	180	142
Theoretical injection rate	g/s	110	143	181
Plastic capacity	g/s	13.8	19.7	27.1
Injection stroke	mm	180
Screw torque	N.m	740
Max screw rotate speed	r/min	250
Clamping force	Ton	130
Opening stroke	mm	400
Space between tie bars	mm	420×420
Mould height	mm	160-440
Max daylight	mm	840
Ejector force	ton	31.4
Ejector stroke	mm	100
Ejector quantity		5
Oil pump motor	kw	13
Pump pressure	Mpa	16
Heating power	kw	9.2
Machine size	M	4.7*1.25*1.85
Machine weight	ton	4.3
Oil tank capacity	L	360
International designation		1300-410

Q1: All of your products are made by yourself or purchasing the others?
We have independent technical team who focus on making machines, all the products
are made by our technical team.
Q2: What is the ability of your factory?
About injection molding machine, we could produce 50 sets machines per month.
about blow molding machine, we could produce 30sets machine per month
Q3: Do you have any technical supports about your products?
We have had long term collaboration with our partners worldwide, and we have a lot
of cooperation with a lot hef advanced manufacture company on the world.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.
Q5: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.
Q6: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller's engineers, and engineer cost USD 80.00 per day.

---
