Product Details
Product Description
Product Description
1. Application:

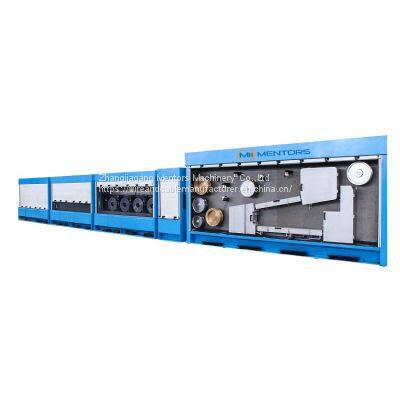

The machine is used for drawing two copper rod from 8mm to 1.2-3.5mm.
Outlet wire can go to dual take up device or compact coiler.
2. Main feature:
1)Max.Dies Qty: 13
2)Outlet wire size: 1.2~3.5mm
3)Max speed:28m/s
4)Individual drives
3. Parameters:
Machine Type
| LSD450/13-2
|
Drawing Wire No.
| 2 Wires
|
Drawing Capstan Dia. (mm)
| φ450
|
Max. Die No.
| 13 * 2
|
Inlet Dia. (mm)
| Copper
| 2 * φ8
|
Outlet Dia. (mm)
| Copper
| 2* φ1.2~φ3.5
|
|
| 1*φ3.5~φ4.5
|
Max. Drawing Speed (m/s)
| 28
|
Main Motor (KW)
| 45 / 55 / 75 /132 KW (AC)
|
Capstan Arrangement
| Horizontal Type
|
Take-up Type (Optional）
| Double Take-up/Single Take-up/ Coiler
|
Optional Equipment
| 450T-2 Horizontal continuous annealing
|
Type
| 450T-2
|
Annealing Wire No.
| 2 Wires
|
Annealing Wire Dia.(mm)
| 2* φ1.2~φ3.2mm, 1*φ3.5~φ4.5mm
|
Annealing Voltage ( V )
| 0 ~ 55 V
|
Annealing Current ( A )
| 0 ~ 8000 A
|
Max. Speed(m/s)
| 25 m / s
|
4.Advantage:
1) Every drum is run by single motor with drivers.
2) Two wires produce at the same time to ensure high production capacity.
>>
