Pet Bottle Recycling Machine for Ployester Fiber

Product Description

Product Description
Pet Bottle Recycling Machine for Ployester Fiber
This machine is used to recycle the waste pet bottles and transforms them into clean PET flakes. And the flakes can be further processed and reutilized with high commercial value. The production capacity we can make on the PET Bottle washing and recycling line can be 500kg to 2000kg per hour.
Features:
1. Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be clean PET flakes material and in order to producing ployester fiber
2. Friendly control system (PLC integrated & separated control on each machine) and touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 and touch screen panel, easy for operation, monitor and emergency stop.
4. The whole pet recycling line System Configuration:can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.

No.	Machine Name	Note
1	Bale breaker	for bottle bricks
2	Belt Conveyor	adjustable
3	Metal detector	select metal
4	Label Remover	Remove the label from the bottles.
5	Manual Sorting Belt	adjustable
6	Belt Conveyor	adjustable
7	Crusher	Blade metal:alloy(9CrSi or SKD-II)
8	Screw Loader	Made of Stainless steel
9	Hot Washer	Made of Stainless steel ,can put some soda
10	High-speed Friction Washer	Made of Stainless steel
11	Float Washing Tank x2sets	Single-screw or Two-screw
12	Dewatering Machine	Vertical or Horizontal
13	Drying system	Made of Stainless steel
14	Storage hopper	Normally 1000L
15	Flakes Pneumatic Separating Machine	New style label remover for flakes

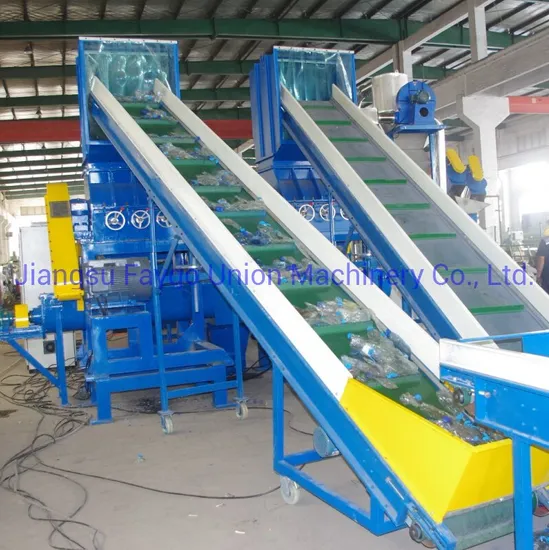

Some pictures of pet recycling machine
Welcome to visit us at any time and please feel free to contact us for more details.
Company Profile

FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.Q: All of your products are made by your self or compacted via purchasing the others?A: We have independent technical team who focus on making machines, all the products are made by our technical team.Q: What is the ability of your factory?A: About 100 lines per month.Q: Do you have any other services about your products?A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.Q: How do you make the quotation for clients? A: The price depends on quality and performance but the clients should be satisfied first.

---
