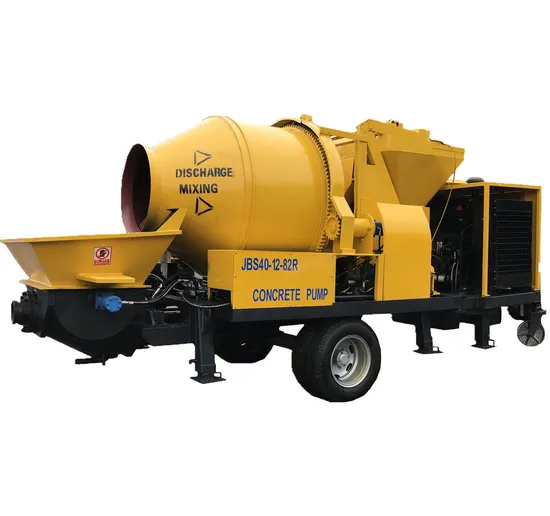

High Pressure Concrete Pump with Mixerdiesel Engine for Building Use

Product Description

Products Description
2023 Hot Sale Portable Construction Work Concrete Mixer Pump
Concrete mixer pump combines the functions of concrete mixer and concrete pump. It can produce concrete and deliver it to job site. Nowadays, it is widely in small and medium projects, especially residential and commercial housing projects.
For our concrete mixer pump, we can use drum mixer or planetary mixer. Our engineers can help customer to choose the right concrete mixer pump as per their projects.

Items	JBS40-10-84R	JBS40-10-82R	LHB40-10-82R
Max. theo. pumping capacity	40	40	40
Max. theo. mixing capacity	15	15	22.5
Max. concrete pumping pressure	10 Mpa	10 Mpa	10 Mpa
Distribution valve type	S Valve	S Valve	S Valve
Concrete cylinder (diameter*stroke)	Ф180*1000	Ф180*1000	Ф180*1000
Hopper capacity	400 L	400 L	400 L
Outlet diameter	Ф150 mm	Ф150 mm	Ф150 mm
Diesel engine brand	Weifang	Weichai	Weichai
Main hydraulic pump	FLUTEK Kawasaki	FLUTEK Kawasaki	FLUTEK Kawasaki
Diesel engine power	84 kw	82 kw	82 kw
Rated speed	2200 r/min	2200 r/min	2200 r/min
Circuit type	Open circuit	Open circuit	Open circuit
Pumping system pressure	32 Mpa	32 Mpa	32 Mpa
Mixing system pressure	6-8 Mpa	6-8 Mpa	6-8 Mpa
Oil tank capacity	370 L	370 L	370 L
Max. conveying distance (v/l)	70/300 m	70/300 m	70/300 m
Max. aggregate diameter	40 mm	40 mm	40 mm
Inside diameter of delivering pipe	Ф125 mm	Ф125 mm	Ф125 mm
Pipe	100 m	100 m	100 m
Overall dimensions (L*W*H)	6000*2300*3150 mm	6000*2300*3150 mm	3800*2200*2100 mm
Total weight	6700 kg	6800 kg	5500 kg

Detailed Images
Machine Parts
Name: diesel engine
Brand: Weichai
Original: China
The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.
Machine Parts
Name: Hydraulic pump
Brand: FLUTEK Kawasaki
Original: Korea
Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.
Machine Parts
Name: Hydraulic oil pipe
Brand: Manuli
Original: Italy
The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.
Main Features
Name: PLC
Brand: OMRON
Original: Japan
We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.
Customer Photos
Our Services
Our services
Pre-sale Service 1 Answering customers' questions, helping customers choose the most suitable machines; 2.Making design drawings as per customers' requirements; 3. Providing quotations. In-sale Service 1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality; 2. Regularly updating production progress to clients; 3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well; 4. Proper packing to minimize the risk that the machines are damaged during transportation; 5. Foundation drawing will be provided for clients to make the foundation in advance. After-sale Service 1. Providing 7 * 24 hours online after-sales service every week 2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc. 3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc. 4. Spare parts supply; 5. Job site visiting every year.
Packing&Shipping

---
