Small Chocolate Refiner Equipment / Machine

Product Description

Chocolate Industrial Refiner Conche with Various Volume
Product Description Chocolate refiner conches are used for producing high-quality chocolate products. The ingredients are ground into very small particles, producing a smooth, luxurious texture.
The machine is fitted with its own extracting unit and the delivery end is fitted with a sampling valve and take off valve. It can be fitted with a shear as an extra to work with very thick mass - products as low as 21% fat content if required.
Once all of the ingredients have been loaded into the conche and it is turned on, the grinding bars begin to rotate and break down the ingredients into particles so small they are measured in microns, giving the produced chocolate a much smoother texture.
During the conching process the ingredients are homogenised thoroughly to produce a quality product with a very fine and smooth texture.

Modle	Capacity(L)	Motor Power(kW)	Heating Power(kW)	Speed(r/min)	Weight(kg)	Overall size(mm)
JLJ5	5	2.2	1	0-170	260	1150*600*120
JLJ1000	1000	37	18	0-64	6100	3500*1850*1850
JLJ3000	3000	90	36	0-64	12500	5300*2400*2700

1. Specification Data A. Machiney Capacity(kg): 20-3000kg
B. Main Drive Motor (kw): 1.5-55kw
C. Dimmension: See table below
D. Fineness(μm): 20-25
E. Grinding Time(h): 18-24
F: Weight(kg): 320-7000
2.Benefits
-Consistent product quality.
-Simple, fully automatic operation.
-Requires a minimal amount of space, no foundations required.
-Low energy consumption.
-Very low maintenance costs.
-Extremely low wear.
-Very flexible in terms of recipes and product composition.
-Fast payback time.

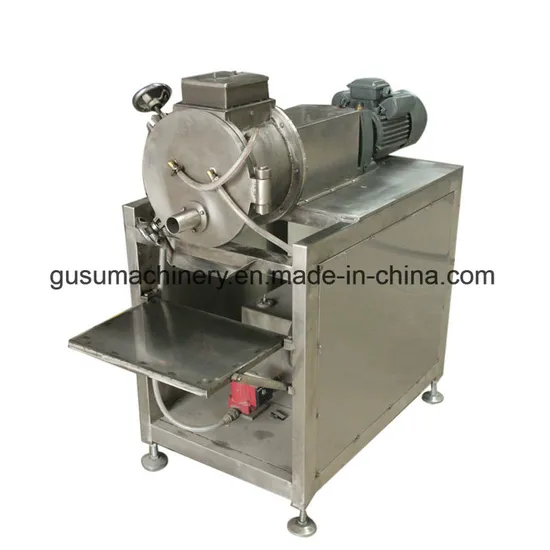

3.Photoes of chocolate refiner conches

RAQ
1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better
2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
