5.2GHz 50W Yagi High Gain Antenna SMA Male Antenna Drone Blocker Direction Antenna

Product Description

Product Description

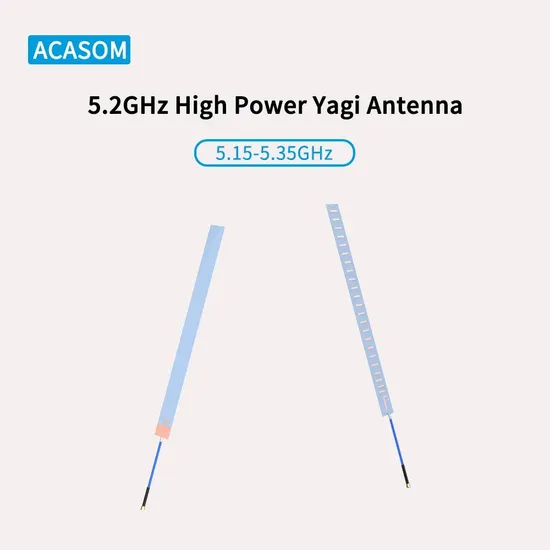

5.2GHz Yagi Antenna For Drone Blocker, High Power 50W, High Gain Antenna Frequency:5.15GHz-5.35GHz
RFIN POWER : 47dBm(50W)
ACASOM accept customizing the Frequency you need!
Product Parameters

5.8GHz Yagi Antenna
Frequency:	5155-5350MHz
Gain:	13 dBi
VSWR:	<1.5:1
Polarization:	Horizontal or Vertical
Horizontal Beamwidth:	26°
Vertical Beamwidth:	23°
Nominal Impedance:	50 Ohms
F/B Ratio:	>20dB
Isolation:
Max Input Power:	50 W
Lightning Protection:	DC Ground

NOTE 1 Since the antenna is soft, please fix it
2 Since the power of the amplifier is relatively large, please connect
the connector better and then supply power to the module.
3 Antenna should be screwed first, then plug the power adapter.

Service and process of order
Certificates and patents
Why choose us

ACASOM has been in the industry for 15 years and we have patents for more than 20 pieces. All the products are our self developed and we are willing to customize products for you. We always insist that technology and service are our core competence, we are ready and at your service.

Exhibition and invitation

FAQ
1 I do not know whether your product satisfy my need, how can i know more?
Answer: Please start an inquiry, we have sufficient experienced engineer and existing products for you. 2 Could i customize my products, like frequency? Answer: Yes and we will provide more information, if that is reasonable, we could provide solutions for you.
3 I want to know more details with the products like video and application, how could i manage that?
Answer: Just choose or contact any of our sale manager, we will be at your service.
4 If i can change some parts, such as switch power module to red and black wire line?
Answer: Off course. We can provide reasonable changes for you at any time.

---
