Product Description
Product Description

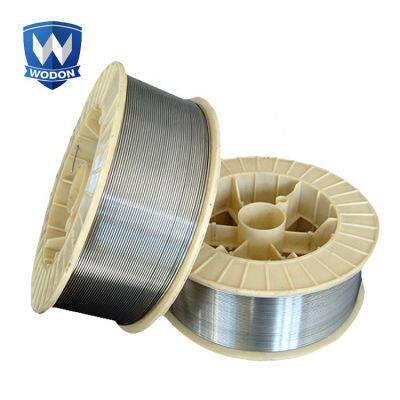

Product Description wear resistant soldering surfacing flux cored wear welding wires ApplicationModelDiameter (mm)Hardness (HRC)Main IngredientSuitable for base layerHB-JYG1#2.8-C, Cr, MoSuitable for buffer layerHB-JYG2#2.855-63C, Cr, MoSuitable for pattern layerHB-JYG3#2.855-63C, Cr, MoCharacteristics:1. A whole wire with no joint within one drum;2. Uniform wire diameter, smooth wire feeding;3. Stable arc, less spatter and smoke, no broken arc phenomena during welding;4. Hardfacing efficiency over 90%;5. Metallurgical bonding to base metal, uniform stress relief of after weld metal. ApplicationModelDiameter (mm)Hardness (HRC)Main IngredientHigh manganese steel hardfacing wire, Suitable for hardfacing hammer head, hammer plate and other high impact partsD1141.650-55C, Cr, MnSuitable for hardfacing bucket gear, mining machinery and other wear partsD1721.2, 1.6≥40C, Cr, MoSuitable for hardfacing the surface of wear parts, such as gear, digger. mining machinery and etc.D2121.2, 1.6≥45C, Cr, MoSuitable for hardfacing high manganese rail, bulldozer and other wear parts under impact.D2561.6HB≥170C, MnSuitable for hardfacing continuous casting rollD3131.645-50C, CrSuitable for repairing die and toughening tool, and mechanical parts with high wear performanceD3221.655-63C, W, MoSuitable for hardfacing hot rolling rollD4051.653-60C, Cr, Mo, W, VSuitable for hardfacing general corrosion resistant partsD4301.635-40C, CrSuitable for hardfacing valveD502Mo1.635-45C, Cr, MoSuitable for hardfacing continuous casting rollD5181.640-50C, Cr, Mo, NiSuitable for hardfacing heavy wear parts, multi-layer welding up to 50 mmD6881.2, 1.650-58C, CrSuitable for hardfacing heavy wear parts, multi-layer welding up to 20 mmD7881.2, 1.650-60C, CrSuitable for hardfacing heavy wear part, single layer welding onlyD788A1.2, 1.650-60C, CrSuitable for hardfacing heavy wear parts, multi-layer welding up to 10 mmD8881.2, 1.658-65C, CrSuitable for hardfacing heat resistant wear partsD9951.658-65C, Cr, Nb, W, V Company InformationJiangsu Wodon Wear Resistant Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu, a port hub city in North China. There are over 300 staffs, including 30 experienced R&D engineers. Our main products include: Chromium carbide overlay (CCO) wear plates, Flux cored hardfacing welding wires etc. With independent intellectual property rights and a number of patents, we have a strong R&D and debugging team, which can provide customers with a streamlined service. Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company’s technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients. 4 Major production bases: Jiangsu, Hebei, Hunan, Jiangsu68 Wear plate production lines (over 130 welding torches)5 Welding wire production lines Annual output of chromium carbide wear plates: 200,000 square metersAnnual output of flux cored hardfacing wires: 9000 tons. Application Cement plants, Metallurgical industry, Power plants, Coal industry, Port, Wind turbines, Mining machinery and Coal chemical industry.Quality assurance Quality Assurance Wodon has professional technicians and excellent engineers to make product quality improve constantly. Since its foundation Wodon follows the way of professional development and wins the market with its advanced technology development, perfect product quality and fully integrated services. We have kept long closed cooperation relations with Beijing Industry University and scientific research institutions like Steel Research headquarters and Beijing Electricity Research . Quality Guarantee Wodon has ISO quality management system certification and execute all the contents of certification. We set up strict rules and regulations, process, and make specific requirements on each quality management from Inspection of raw materials into factory, product realization process, process inspection , final inspection, product protection, Incoming product management until final after - sales service. Commitment Wodon has specialized after-sales team-work, can solve problems efficiently and quickly. If any problems, related persons will solve it within 12 hrs after getting notice from suppliers. Advantages1. The overlay chemical composition is the keyThe main ingredients of Wodon plates are C(%) :3.0-5.0 and Cr(%):25-40. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles throughout the layer will guarantee a super wear resistant surface. Performance test:Test equipment: Quartz sand rubber wheel abrasion test machine.Conditions: Choosing same dimension specimens for different materials and wear plate producers, and put them under the same wearing working conditions in our testing equipment. 45 minutes for each specimen Results: The test results show that the life span of Wodon wear plate is 2.5 times higher than domestic wear plates and 1.5 times than imported ones. 2. Chromium carbide microstructureThe wear resistance of wear plate depends mostly on the hardness, shape, size, amount and distribution of the chromium carbide hard particles. As you can check on the picture, the carbide (Cr7C3) volume fraction on the microstructure is above 50%. 3. Bonding strength between the overlay and base plate.The overlay and base plate are very well bonding. The overlay will penetrate into base plate about 0.8mm-1.8mm, reaching up to 350Mpa in our tests. Customer Visit Contact Us
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
