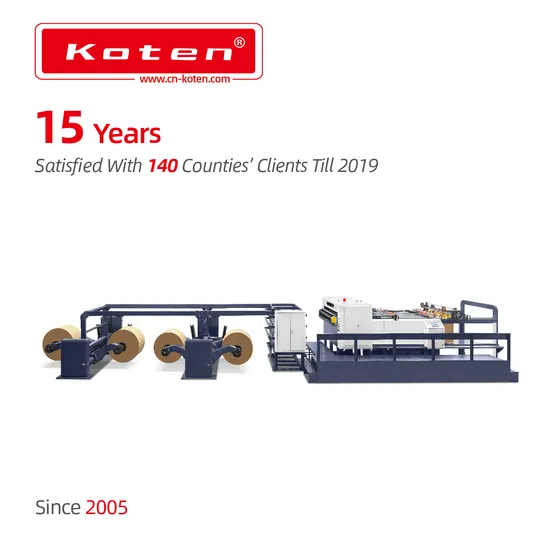

Roll to Sheet Paper Sheeting Machine, Kraft Paper/Paperboard/Grey Paper/Craft Paper Sheeting Machine by Rotary Paper Reel to Sheet Cross Cutting Machine.

Product Description

Process.
Finished Sample.
Main features:
This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
Main Specifications.

Model	GDQ-1400	GDQ-1700
Suitable Paper Thickness	50-500gsm	50-500gsm
Max. Diameter of Mother Roll	1650mmMax	1650mmMax
Max. Height of Stacker	1400mm(55'')Max	1700mm(67'')Max
Cutting length	400-1600mm	400-1600mm
Cutting accuracy	+/-0.4mm	+/-0.4mm
Max. cutting speed	300cuts/min	300cuts/min
Max. Running speed	300m/min	300m/min
Atmospheric pressure	0.8MPa	0.8MPa
Power supply	AC380V/220Vx50HZ	AC380V/220Vx50HZ
Total weight	9000kg	10000kg
Dimensions	9m×3.9m×2.35m	9m×4.2m×2.35m
Total power	23KW	25KW

---
