Product Description
Product Description

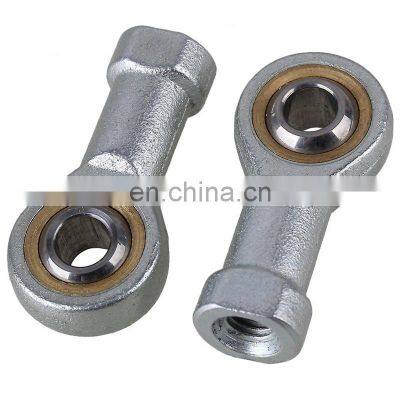

Products Description-Rod end bearing, is used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint isrequired.-A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached.-The housing is made of machined low carbon steel that is plated for corrosion resistance.-Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected partsMaterialcarbon steel, chrome steelThread typeMale (External) Thread, Right HandThread sizeM12x1.75mm, M8, M12 etcThrough bore length16mm etc1. Rod end bearing introductionRod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic 2. Rod end bearing applicationRod end bearing are widely used in hydraulic engineering, metal forming machine, construction machinery, automation equipment, automotive shock absorber, water machinery sluice gate,navigation lock, textile machinery.Maitenancemaintenance-free, maintenance required Body Material stainless steel, carbon steel Race Materialbronze, PTFE liner, plastic injection Ball Materialchrome steel, stainless steel Dimensionmetric and inch ( bore 5mm - 80 mm )Series two piecesSI-PK, SA-PK, CF, CM, CF-T, CM-TSeries three piecesSI-ES, SA-ES, SI-TK, SA-TK, GIR, GAR, SI-ZK, SA-ZK, JF, JM, KF, KMSeries bronze racePHS, POS, SIZP-S, SAZP-SRod end with studCF-Y, CM-Y, SQZ-RS, SQ-RS, SQP-S, BL-DRod end for hydraulic GIHR-DO, GIHR-K-DO, GIHN-K-LO, GIHO-K-DO, GK-SKRelated Products
>>
