Ruihang Automatic Wide Window Door Frame Profile Extrusion Production Line

Product Description

Product Description
Production line composition:
Conical twin screw extruder, die, vacuum setting table, drawing machine, cutting machine, discharge table .
Main features of the production line:
The unit has the characteristics of low energy consumption, stable performance, high speed and high efficiency. The profile extruded by this machine has beautiful appearance, strong compressive performance, good light stability and thermal stability, low dimensional change rate and anti-aging.
Features and applications of the products produced:
Dedicated to PVC, PE, PP wood-plastic foam door panel, decorative panel extrusion production, PVC door and window profiles, window sill panels, exterior wall panels, decorative panels, porous pipe and other profiles extrusion, the production of wood-plastic panel green environmental protection, moisture-proof, anti-corrosion without deformation, can produce a variety of decorative products, a wide range of uses.
Product Parameters

Type	YF-600	YF-800	YF-1000	YF-1250
Product width (mm)	600	800	1000	1250
Product thickness(mm)	20-45	20-45	20-45	20-45
Main machine model	SJSZ-80/156	SJSZ-92/188	SJSZ-92/188	SJSZ-92/188
Production kg/h	360	500	600	600
Cooling water consumption (m³/h)	12	13	15	18
Compressed air pressure m³/min	0.5	0.6	0.8	1

Detailed Photos
This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.
After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw.

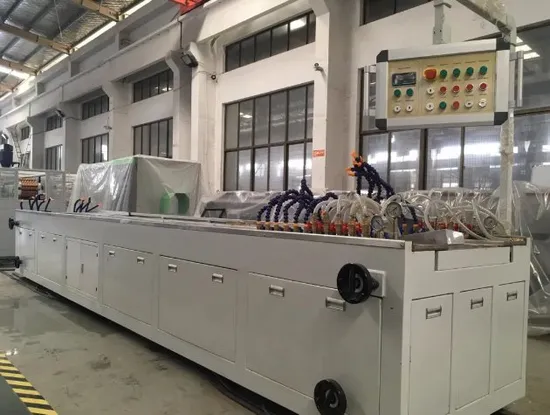

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.
The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.After the cutting machine is controlled by the travel switch according to the required length, it will automatically cut, and the frame will be turned over after a delay to implement flow production.
