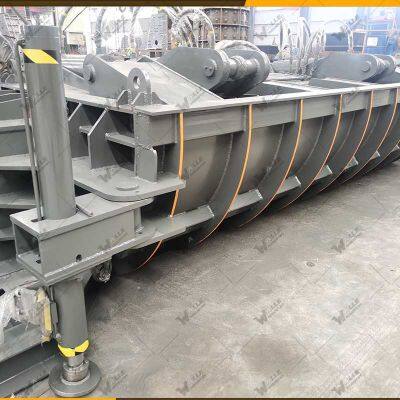

The Car Baler/Car Logger Machine is a highly efficient and innovative piece of equipment designed for the recycling and handling of end-of-life vehicles.
This machine combines the functions of baling and logging cars, providing a comprehensive solution for the automotive recycling industry. With its robust construction and advanced technology, it can handle a wide range of vehicle sizes and types.
The car baler compresses vehicles into dense bales, reducing their volume significantly. This not only saves storage space but also makes transportation more efficient and cost-effective. The baling process is quick and smooth, ensuring a high throughput of materials.
On the other hand, the car logger is used to cut and process vehicles into manageable logs. This allows for easier separation of different materials such as metal, plastic, and rubber, facilitating the recycling process. The logger is equipped with powerful cutting tools that can handle even the toughest vehicle components.
The Car Baler/Car Logger Machine is designed with safety in mind. It features multiple safety interlocks and protective devices to ensure the safety of operators. Additionally, it is easy to operate and maintain, with user-friendly controls and accessible service points.
This machine is an essential tool for recycling centers, scrap yards, and automotive dismantlers. It helps to maximize the value of end-of-life vehicles by recovering valuable materials and reducing waste. With its reliable performance and versatility, the Car Baler/Car Logger Machine is a valuable investment for any business involved in the recycling industry.

Q:Can I order a customized grappling hook?
A:Yes, not only that, you can also whether to delete it or not .
Item
Parameter
Note
1
Main
Model
YG320/220-4000
1/320T
Cylinder
Nominal thrust
1826KN
Trip
4000MM

2
Level①
Model
YG200/140-600
2/200T
Pressing material
Cylinder
Nominal thrust
785KN*3
Trip
600MM

3
Level②
Model
YG200/140-600
2/200T
Pressing material
Cylinder
Nominal thrust
785KN*3
Trip
514MM

4
Box size (L*W*H)(MM)
5000*2000*1500

5
Bale size(L*W*H)(MM)
(~600)*1000*1000

6
Working pressure(Mpa)
21.5 Mpa

7
Output bale mode
Crane

8
Bale density(Kg/m3)
≥2000(Fe)

9
Single cycle time
≥130S

10
Operation mode
Handle operation

11
Equipment weight
30T

12
Dimensions of equipment
6500*2400*2700mm

13
Engine
Model
HBE
Power
150HP

Rolling
2000r/min
Quantity
1

14
Oil pump
Model
A4V180+180
Pressure
31.5Mpa

Flow
376ml/r
Quantity
1

15
Average fuel consumption
15L/h
