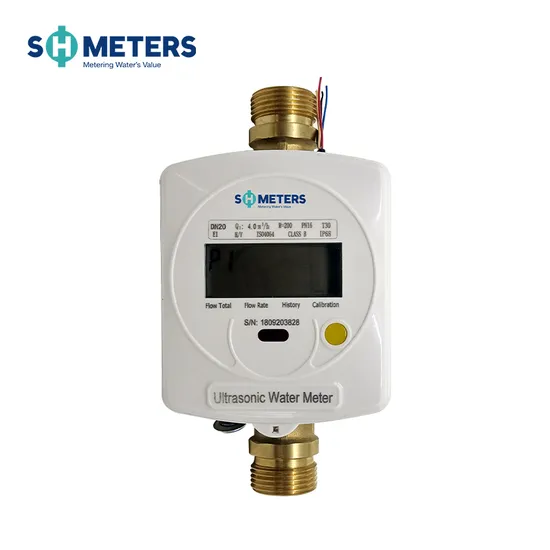

DN15-DN40 Small Size Digital Smart Remote Reading Wireless Intelligent Ultrasonic Water Meter

Product Description

DN15-DN40 Small Size Digital Smart Remote Reading Wireless Intelligent Ultrasonic Water Meter Product Description Most of the small-bore ultrasonic water meters are used in residential water, and the performance of the water meters is stable, and it has reached the CNAS laboratory certification standard.
In the case of a full pipe, it can be installed at any angle, and is suitable for various water qualities, and the battery life is as high as 10 years.
Our product samples are not limited, and the delivery time is fast, and the production capacity is stable.

AMI SYSTEM INTRODUCTION SIMPLE IS SMART…..
System structure diagram as follows
· Server send commands to the data concentrator through network;
· Concentrator transforms the received commands into radio signal and send the signal to the water meters;
· Water meters respond and execute the commands accordingly;
· Water meters deliver the result or data back to the management center as per the original route after the actions finished.
Service
· Quality Gurantee: Water meter for 1 year;
· Support install guide & test in site;
· Date sheet can be sent to other management system easily.
Product Features ·Material:brass
·Applicable scene:home,apartment,garden housing ,ground,commercial,residential building,malls,household portable,garden,domestic residential
·Technical data conform to international standard ISO 4064.
·Communication:rs485 modbus,LoRa
·Fitting:Pressure sensor,battery,lcd display,reading device,data logger,liquid turbine,user interface unit,reading device,actuator,connection fittings,Valve
·No mechanical movable parts,Impurities in water can't be affected, long service life and high accuracy
·Wide measurement range. Very small flow can be measured.
·Various alarm functions:Battery voltage can alarm,empty tubes or pipes that are not full of water,transducer fault alarm and more.
·Low-power design and the use of high-energy batteries, can work for 8 years and more.
·The communication interface is Lora or Rs485, can achieve remote real-time monitoring and management on the LAN.
·Threaded connection digital water meter, used in industrial pipelines, suitable for high pressure environment, can choose whether to install pulse output
·With remote transmission system software to support reading and monitoring
·Provide a complete software metering and charging solution
·Automatic leak measurement

Overall Dimension

Nominal Diameter	Length L	Length L1	Width M	Height H
mm
DN15	165	260	95	86
DN20	195	300	95	86
DN25	225	346	95	89
DN32	180	305	95	100
DN40	200	330	95	120
