Analog Magnetic Float /Radar/ Glass Plate/ Glass Tube Tubular/Steel Ruler Well Water Level Depth/ Ultrasonic Liquid Level Meter for Diesel Fuel Oil Tank Fluid

Product Description

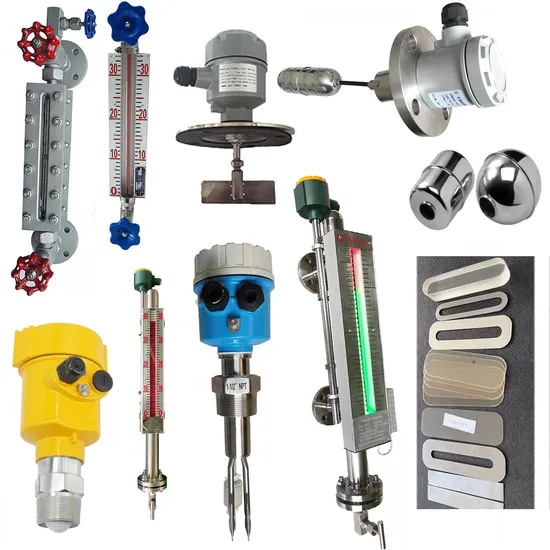

We are manufacture Level gauges, Sight Glass, glass plate, Mica Sheet,
Level Switch, Level Transmitter, Flowmeteer,
Floaters .
Welcome to contact us on line and leave your contact details, we will contact you once see your message.
Magnetic level meter Steam Boiler Water Liquid Level Gauge Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges.XU KANG offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System.
Magnetic Level Gauge operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is typically constructed with non magnetic pipe having process connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360o magnetic flux field.

Float Cage Material	SS304, SS316, PTFE, PP, PVC, PVDF
Max. Centre to Centre Distance	6000 mm, greater lengths on request
Connecting Flanges	According to DIN or ANSI B16.5
Rated Pressure	<10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDFHigher pressure rating can also be provided
Temperature of Liquid	450ºC (Max.) for SS, 80ºC (Max.) for PVDF60ºC (Max.) for PVC, 50ºC (Max.) for PP
Specific Gravity	Min. 0.40g/cm³
Scale	Graduated in cm, Aluminium or SS304
Signal	4~20mA.DC,pulse,RS485
Switch type	NO,NC,SPDT
Measuring Accuracy	+/- 5 mm
Explosion-proof mark	Exd II BT6
Protection Grade	IP65/IP67
