Big Capacity Drum Sieve Paddy Grain Seeds Pre Cleaning Machine

Product Description

1.2-2TPH High efficiency paddy seed cleaning machine for sale Product Description
TZQY/QSX Series Combined paddy cleaner and destoner machine has both function of Cleaning and Destoning. It could separate the impurities,like mud,straw,sand out of the coming raw paddy. The combined structure design could save installation space,it is an idea cleaning equipment for small and medium scale rice mill.
Structure diagram of Combined Paddy Cleaner

1. Large impurity separation cylinder	2. Raw grain import duct
3. Fine and miscellaneous separation cylinder	4. Remove the stone sieve grain inlet pipe
5. Air suction - discharge assembly	6. Rack
7. Suction hood	8. Removing stone fish scale sieve body
9. Stone removal base	10. Selected return air regulating plate
11. Initial cleaning suction duct (self equipped)	12. Stone removal suction duct (self equipped)
13. Fan (self equipped)

Scope of application and performance characteristics of this product
The screening and stone removal combination screen is a new type of grain cleaning equipment that combines a preliminary cleaning cylindrical screen and a suction specific gravity stone removal machine. Mainly used for grain processing, separating large impurities such as grains, stems, stems, mud blocks, and separating shoulder stones from raw grains.
This machine first removes large impurities from grains and utilizes the characteristics of different densities and suspension speeds between grains and shoulder stones. With the help of an upward airflow passing through the gaps between grain flow particles, lighter grains are suspended, while heavier shoulder stones remain on the surface of the stone removal sieve with fish scales. Under the action of the inclined and reciprocating stone removal plate, the stones follow the fish scales to move towards the stone removal end. The grains floating on the upper layer slide towards the discharge end under their own weight, thereby separating heavy impurities such as shoulder stones from the grains and achieving the goal of removing impurities from the grains.
This type of stone removal machine consists of cylindrical initial cleaning, suction hood, screen body, vibration mechanism, frame, and other parts. See Figure 1
Rubber bearings are used at the connection of the vibration of this machine. Rubber bearings are durable and absorb vibrations.
The air volume adjustment of this machine is convenient and has a large range. The inclination angle of the stone slab can be adjusted within the range of 10-14 degrees. Therefore, when the output of this machine fluctuates within a certain range, it can achieve good cleaning effects.
Features of TZQY/QSX Series combined paddy cleaner
This machine has the characteristics of smooth movement, firmness and reliability, stable process performance, low vibration, low noise, no dust leakage and operation, and convenient maintenance.
Product Parameters

Model	Capacity(t/h)	Power(kw)	Air Volume(m³/h)
TZQY70/QSX65	1.2-2	0.75*2	2500-3000

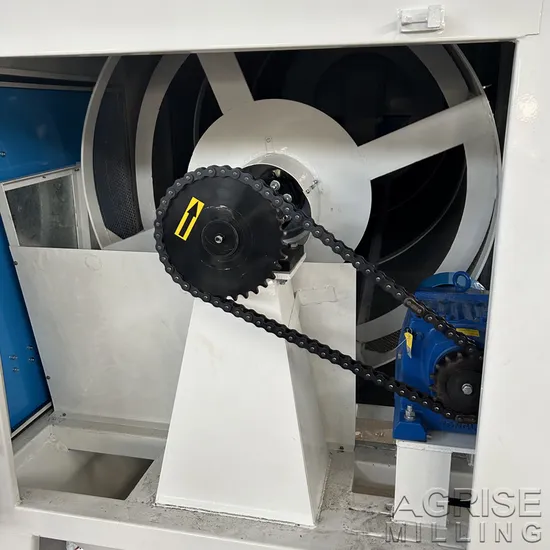

Detailed Photos
Packaging & Shipping
Customers Visiting
3D Rice Mill Display
AGRISE Rice Mills Display
WELCOME TO CONTACT US FOR MORE INFORMATION

---
