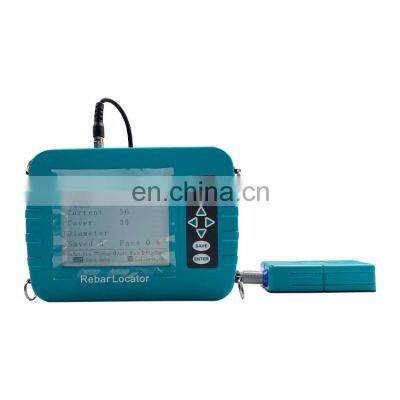

The rebar locator is a portable non-destructive testing instrument,which can used for the detection of the construction quality of reinforced concrete structures.it can measure the position of steel bars on the concrete surface and detect the thicknee of thickness of the protective layer of the steel bars and diameter of the steel bars
Product name
|
| Reinforcement protection layer tester
|
|
|
Model
|
| Lovely-RBL
|
|
|
Maximum Allowable Error of Second Range Protective Laye Thickness
| ±1mm
| 6~79mm
|
|
|
| ±2mm
| 80~119mm
|
|
|
| ±4mm
| 120~139mm
|
|
|
Applicable Scope of Diameter Estimation
| ±6mm
| Φ6mm-Φ32mm
|
|
|
Maximum error of diameter indication
|
| ±1 Specifications
|
|
|
Section grid
| Not support
|
|
|
|
Storage Quantity
|
| 2000 Components*1000 Measuring Points
|
|
|
Data transmission mode
|
| USB,Wireless Cloud Transport(Options)
|
|
|
Power supply mode
|
| lithium battery
|
|
|
Host parameters
|
| Waterproof parameters:IP65
|
|
|
|
| Screen size:5 inches
|
|
|
|
| Resolving power:320*240
|
|
|
|
| Volume:195*140*45mm
|
|
|
|
| Weight:0.8kg
|
|
|
Power supply
|
| Large capacity lithium battery for more than12 hours
|
|
|
Working environment requirements
|
| Temperature:-10℃~+40℃
|
|
|
|
| Humidity:<90%RH
|
|
|
1.Upgraded wireless cloud transmission function
2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof3.Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content4.Built-in large capacity memory card, storage capacity upgrade5.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk6.Real-time display of protective layer thickness and steel signal image, minimum automatic locking7.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth8.Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work9.Professionaldata analysis software, so you’re your post- processing data and report generation work can be easily completed
