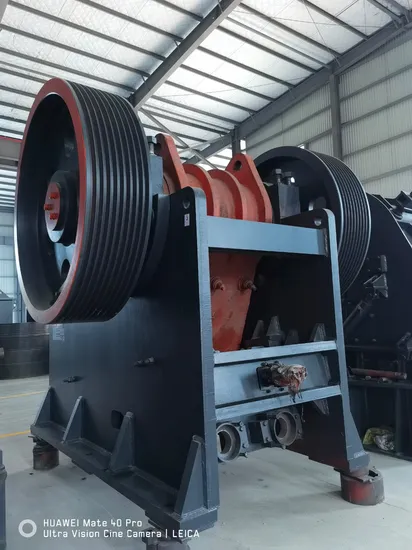

Stone Jaw Crusher for Quarry Crushing Plant

Product Description

Product Description:
The jaw crusher is a stone crushing equipment with high production capacity, large crushing ratio, and high crushing efficiency. It is mainly used for the primary crushing of hard or medium-hard stones. It can process all kinds of ores with compressive strength not higher than 320MPa to medium particle size at one time. It is often combined with the cone crusher, impact crusher, sand making machine, etc. to form a complete set of sand and gravel production plant.
The jaw crusher is one of the most common limestone stone crushers. There are many models of PE jaw crusher, among which the most popular models are PE-400×600, PE-600×900, PE-750×1060, PE-900x1200, etc.
Product Advantages:
PE jaw crusher is commonly used throughout the industry to reduce the pieces into the required sizes and to impart fineness to the broken material with high quality and efficiency. 1. Heavy-duty designed jaws crusher frame. High manganese steel castings jaw plate can be reversed to extend life and save cost. The gasket adjusting device is reliable and convenient. 2. Jaw crusher can make rocks, sandstones, river pebbles, and other materials into various granularity that meet the requirements of construction sand with high compressive strength, being more in line with building requirements, and characteristic of improving building quality. 3. Deep crushing chamber is to improve feeding and output capacity. Baichy jaw crusher is developed to crush hard stones in maximum productivity at the lowest operating costs. Wide adjustment range of discharging port meets different demands.
Product Application:
The jaw crusher is mainly used for primary crushing equipment (coarse crusher). It is used extensively throughout the aggregate and mineral processing industry. Also, it is applied in construction material recycling, metallurgy, the chemical industry, electric power, water conservancy, transportation, and other fields. etc.
Working Principle:
The jaw crusher machine uses compressive force to break hard stone material, such as granite, basalt, limestone, gold ore, boulders, etc. The two vertical manganese jaw plates create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger than the bottom. The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces. As the moving jaw moves away from the fixed jaw, the crushed material is discharged from the discharge opening at the bottom. The required rock size is determined by the gap between the jaws. The wide adjustment range of discharging port meets different demands.

Model	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PE400x600	400x600	350	40-90	15-60	30	1700x1750x1680
PE500x750	500x750	425	50-100	40-130	45	2150x1900x1950
PE600x900	600x900	500	60-125	90-180	55	2500x2010x2350
PE750x1060	750x1060	630	60-150	110-380	110	2630x2310x3110
PE900x1200	900x1200	750	95-165	220-450	132	3720x2850x3250
PE1000x1200	1000x1200	850	200-300	280-560	160	3820x2850x3250
PE1200x1500	1200x1500	1020	150-300	400-800	220	3710x3446x4075
PE1500x1800	1500x1800	1200	210-360	520- 1100	280	5100x4700x4300

For more information, please contact:
- Victor Lim

---
