Heavy-Duty Single Cone Ribbon Mixer Machine with Efficient Mixing Technology and Easy Maintenance

Product Description

Introducing our innovative line of industrial mixers: The Conical Screw Ribbon Mixers are extensively utilized for the effective mixing, stirring, and blending of powders, granular materials, slurries, and viscous substances. Featuring an optional liquid spraying system, these mixers can be customized to operate under vacuum, pressurized, heated, or cooled conditions, according to user specifications. This adaptability ensures that our mixers meet diverse mixing and stirring requirements under varied process conditions.
Experience unmatched mixing efficiency with The Conical Screw Ribbon Mixers which offer robust mixing capabilities. During operation, materials near the container wall ascend, while those at the center descend, facilitating a gentle yet comprehensive mix of flowable materials. This process guarantees the high uniformity of mixed materials, even in large quantities, within a remarkably short time frame. The meticulously designed discharge mechanism ensures that the material in the hopper is almost completely expelled, significantly minimizing material residue and waste.
Product Features
1. Cantilever Shaft Structure, ensuring that the bearing ends do not come into contact with the material.
2. The minimal gap between the agitator blades and the container wall helps to prevent material adhesion.
3. A standardized agitator drive box ensures stable equipment operation and reduces maintenance costs.
4. Easy-Cleaning: Designed for quick and thorough cleaning between batches;
5. Durable Construction: Built with robust materials for long-term reliability;
6. Wide Application: Ideal for use in industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Equipment model	Total Volume (m³)	Loading Coefficient	Motor Power (kW)	Overall Dimensions (mm)	Equipment Weight (kg)
RX-DZH-0.06	0.06	0.4-0.6	1.5	φ630x1451	120
RX-DZH-0.1	0.1	0.4-0.6	2.2	φ715x1569	220
RX-DZH-0.3	0.3	0.4-0.6	2.2	φ920x1929	320
RX-DZH-0.5	0.5	0.4-0.6	4	φ1140x2327	410
RX-DZH-1	1	0.4-0.6	7.5	φ1480x2869	900
RX-DZH-1.5	1.5	0.4-0.6	11	φ1633x3140	1200
RX-DZH-2	2	0.4-0.6	11	φ1816x3489	1300
RX-DZH-3	3	0.4-0.6	15	φ2040x3760	2400
RX-DZH-4	4	0.4-0.6	18.5	φ2250x4425	2500
RX-DZH-6	6	0.4-0.6	22	φ2548x4940	2850
RX-DZH-8	8	0.4-0.6	30	φ2780x5360	4250
RX-DZH-10	10	0.4-0.6	37	φ3018x5815	5200
RX-DZH-12	12	0.4-0.6	45	φ3204x6100	5800
RX-DZH-15	15	0.4-0.6	55	φ3442x6540	6300

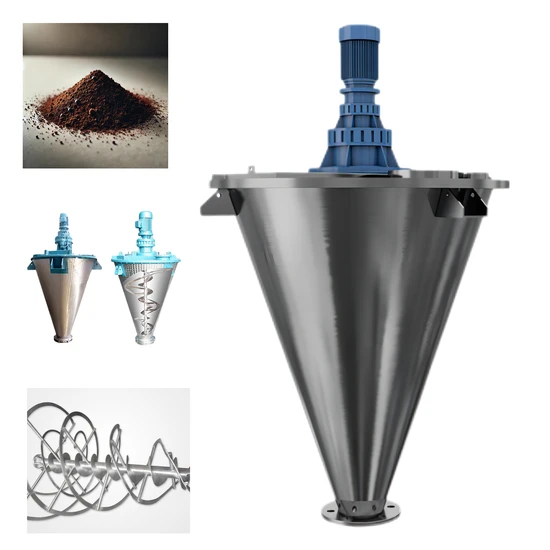

Product DisplayProduct Structure
Application
The Double Cone Mixer is versatile across industries including powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical, medical, and food industries.
About Our Company
Shijiazhuang Rongxin Science and Technology Co., Ltd.
was established in 2007, with its headquarters in Shijiazhuang, the capital of Hebei Province. Specializing in the design and provision of automated material handling systems, our company is renowned as an industry leader, holding numerous patents and receiving honors such as 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Our core product offerings include dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems, widely applied in the metal materials, food processing, chemical, pharmaceutical, and new energy industries. Additionally, we boast an in-house production facility with advanced manufacturing lines, ensuring the superior quality of our equipment.
