Product Details
Product Description
Product Description
Overview

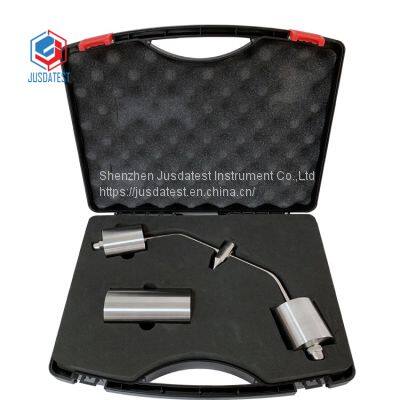

This device is designed and manufactured according to the IEC60335、IEC61010 standards clauses of the ball pressure test, and is a special instrument used to test the heat resistance of non-metallic materials. It is suitable for heat resistance test of non-metallic materials such as electrical equipment and its components and parts, non-ceramic solid electrical insulating materials.
Technical Parameter
Loadweight
| 20N±0.2N
| Sphere
| R2.5mm
|
Material
| 304 stainless steel
| Pillar
| Ф50X100 Ф2.5X25
|
Standard
| IEC60335、IEC60601、IEC60950、IEC61010
|
Balance check:
Put the pressure ball on the support, adjust the position of the load body according to its swing, then tighten the load body, put the pressure ball on the support again, and observe its swing to determine the adjustment effect. Only in the case of balance, the pressure ball can be placed smoothly, otherwise the pressure ball will swing obviously, if it is detected by optical equipment, it will seriously affect the accuracy of the test results.
Sherry Xu
Tel:+86-0755-21518810
Email:sherryxu@jusdatest.com
>>
