High Standard CE Plastic PE/PP/WPC/PVC/SPVC Conical Parallel Twin Screw Die Face Hot Cutting Granulator Granulation/ Pelletizing/Pelletized Machine

Product Description

Product Description
Plastic WPC/PVC/SPVC/PE/PP Conical Twin Screw Die Face Cutter Granulation/Pelletizing pipe&profile Machine Extruder
Application
This production line produces pellets by hot cutting, mainly PVC pellets.It is widely used in producing PVC granules/ pellets from the recycled material of rigid PVC, soft PVC and waste PVC, mixed material, recycled PVC powder etc.

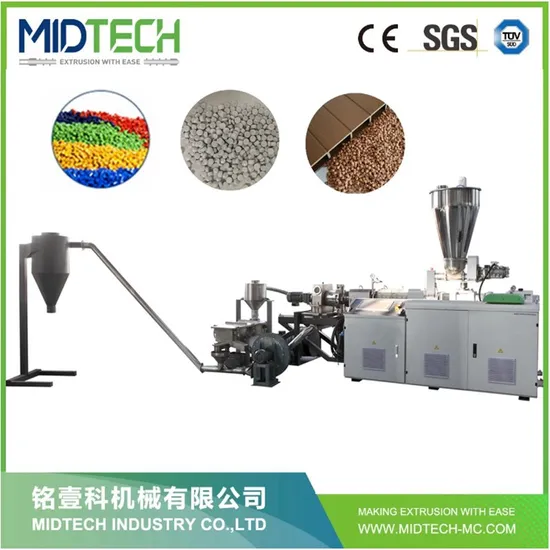

Hot cutting granulator is composed by conical screw extruder, pelletizing die, blowing system and silo.Clients can add masterbatch to produce granules with different color.
The line includes:
1.Conical twin screw extruder: SJZ51/105, SJZ65/132,SJZ80/156,SJZ92/188
2.Granulator mould; die face cutting with high quality blades and high rotary mould
3.Hot cutting device;
4.Blower&Storage hopper:big size hopper with automatic filling system
Features
1.Low price&good quality
2.Capacity 120-1000kg/h
3.Mould face hot cutting
4.CE approved
Also, the main technical parameters:

Model	Main extruder power	Capacity	Pellets diameter	Total length
SJSZ55/110	22kw	180kg/h	3mm	12m
SJSZ65/132	37kw	300kg/h	3mm	15m
SJSZ80/156	55kw	450kg/h	3mm	15m
SJSZ92/188	110KW	1000kg/h	3mm	18m

If you need any support, please don't hesitate to call me on phone
We sincerely invite you come and visit us in China, then you can collect more information for our reliable quality and competitiive price. Company Profile

FAQ
If You Have Any Questions ,Please Contact Us Any Time, We Are Here For Your Service!!!
