Latest Technology EPDM Floor Molding Press Machine

Product Description

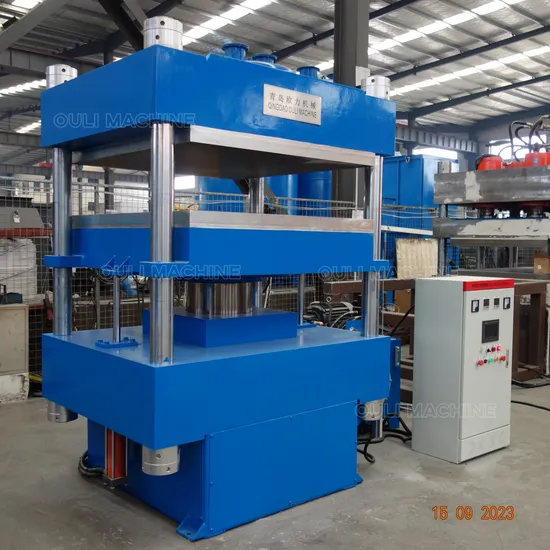

Latest Technology EPDM Floor Molding Press Machine
Product Description
This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
The electrical control uses the advanced PLC control technology,may realize automatic controls when, automatically operates the mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigration-ton type,the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
Product Parameters

Parameter/model	100 Ton	150 Ton	200 Ton	250 Ton	300 Ton	350 Ton	400 Ton	500 Ton
Clamping Force(T)	100	150	200	250	300	350	400	500
Plate Size(mm)	400*400	450*460	560*560	650*600	650*650	750*700	850*850	1000*1000
Pistion Stroke(mm)	250	250	250	250	280	300	300	300
Cylinder Diameter(mm)	250	300	355	400	450	475	500	560
Main Motor Power(KW)	12	17	22	34	34	43	48	72
Type of mold opening	Track-Mold-Open
Weight(KG)	4500	5500	7000	9000	11000	15000	17500	21500
Length(mm)	2650	3200	3650	4200	2360	2930	2500	3750
Width (mm)	2000	2700	2600	3300	1650	2350	2630	2700
Height(mm)	2000	2500	2610	3300	1850	2100	3460	2800

Our Advantages
Company Profile
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We are specialized in rubber machinery designing,manufacturing and maintenance work. OULI main products: 1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine. Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil. We warmly welcome customers visit our factory and technology discussion is highly appreciated.
Marketing Campaign
Packaging & Shipping
FAQ Q1: Where is your factory located?
A1: Qingdao OULI machine co.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China

Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines

---
