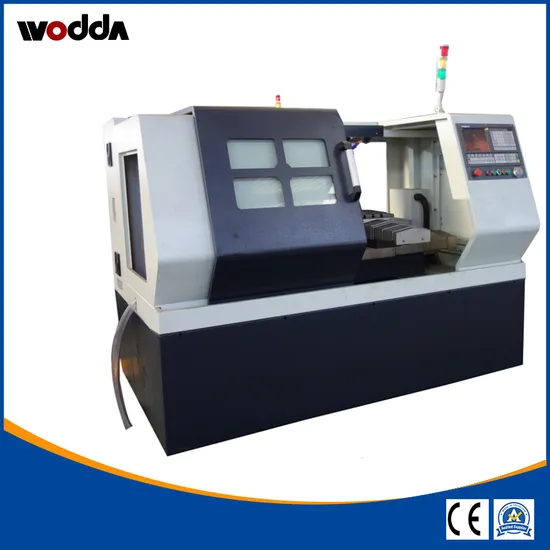

Universal Horizontal Machining CNC Turret Slat Machine Tool & Lathe for Cutting Metal

Product Description

Picture:
CNC Lathe Features: Higher accuracy Taiwan linear guideways High speed spindle unit, optional homemade spindle Higher rigidity cast iron Integrated automatic lubrication CNC Lathe Use:
The machine is suitable for processing all kinds of small and medium-sized shaft and disc parts. It can turn various internal and external curved surfaces of threads, arcs, cones and rotary bodies. It is widely used in plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, Bearings and other industries. Technical Parameter:

Model	H36
Max swing over bed	Φ360mm
Max swing over cross slide	Φ110mm
Chuck size	6''
X axis stroke	340mm
Z axis stroke	250mm
Guide form	linear
Spindle speed	2500/4000rpm
Spindle nose	A2-5
Spindle bore	Φ48mm
Bar capacity	Φ38mm
Fast speed move	X:15 Z:15 m/min
Spindle power	4KW
Tool size	20*20 mm
Tools numbers	row knifi 4pcs
X/Z axis positioning accuracy	0.003 mm
X/Z axis repeatability	0.003 mm
Machine size	2000x1400x1580 mm
Machine weight	1500 kg

CNC Lathe Machine Details:
CNC Lathe Machine Real Picture In Woekshop:
CNC Lathe Machine For Delivery
