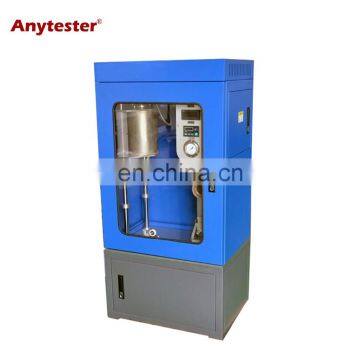

Small Melt Spinning Machine For Lab Use

Product Description

Product Description
Application HY1110 Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling.features 1. It consists of heating system, spinneret system, winding system 2. It adopts perspective organic glass door, easy to observe;3. Thicken 316 stainless steel feed cylinder to make sample heating more uniform;4. Test temperature real-time monitoring, the max. Temprature can be 400℃;5. Uses replaceable paper cylinder (width: 120mm).Specification ModelHY1110Rotary widing system Rotary head Friction driven rotary headSpeed range300~1000m/minWinding column capacity 120mm widthMax. Winding dia.320mmConfiguration Ceramic roller, automatic winder Spinneret Heating Electric heating, 3kwTemperature range 400℃ max.Temperature accuracy ±0.5℃Power supply AC220V, 50HzDimensions 700mm×500mm×1400mmWeights 100kg

---
