Potato Harvester Harvest Potato Agricultural Machinery Onion Harvester Tractor Mounted Farm Machinery High Efficient Harvester Potato Digger

Product Description

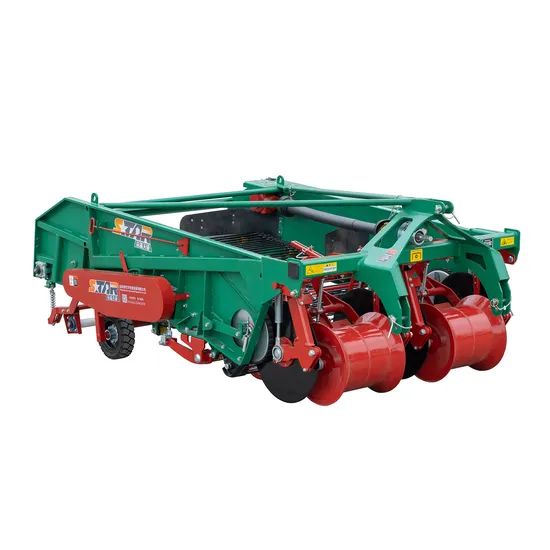

The 4UX-180B Potato harvester is an essential equipment for harvesting commercial and seed potatoes in large farms and large planting areas. It can complete the excavation, conveying separation and collection strip laying operations at one time. It has the characteristics of high harvest efficiency, no hurt potato, low breaking rate, high rate of bright potato, long service life and so on.

No.	Item	Unit	Parameter Index
1	Structural style	/	Suspensiion type
2	Overall dimension (length×width×height)	mm	3880*2215*1215
3	Machine weight	kg	1588
4	Tractor engine power	kW	88.2-118
5	Working ridges	/	2
6	Working width	mm	1800
7	Adapt to ridge width	mm	≤900
8	Digging depth	mm	150~300
10	digging shovel type	/	Combined tip shovel
11	Potato-exposing rate	/	≥96%
12	Injury rate of potato	/	≤1.5%
13	Breakage rate	/	≤2%
14	Conveying device type	/	Conveyor chain grate sieve

1. The separation effect of potato soil and potato seedlings is good. The front floating disk knife is used to cut the surface along both sides of potato ridge together with weeds, which is conducive to digging parts and preventing the machine from winding and blocking the stems and weeds on both sides; The shape suppression and depth limiting device not only crushed the hard shell of the ridge surface, but also made the potato soil loose and improved the separation effect of potato soil. Moreover, it can ensure the depth of digging shovel, dig potato fully and do not hurt potato, reduce power consumption. Two-stage wave grid transmission separation screen, the material is made of high-performance alloy steel through special heat treatment process, with good elasticity, high strength, good wear resistance and other characteristics, so that the potato soil separation effect to achieve the best, sticky, sandy soil can be harvested.
2. Low breaking rate: the design of two-stage grille type transmission and separation device is adopted. Different vibration amplitude is scientifically adjusted according to the content of potato soil at different stages of transmission and potato movement track. The driving wheel is rubber teeth, meshing well with the steel grid, light wear, long life, reliable use, potato breakage less, the potato peel rate reduced within 2%.
3.sposing potato rate is high: the bottom of the installation of suppression roller, can be harvested ridge surface compaction, separation and cleaning after the potato transport to the rear of the machine, by adjusting the width of the baffle, the potato set spread on the flat ground, Ming potato rate is further improved, greatly convenient late pick up.
4.Wide range of adaptation. The supporting power is 88.2 ~ 118, which is suitable for the four-wheel tractors owned by most farmers at the present stage. It has the characteristics of wide adaptation power, less investment and quick effect.
5. The machine runs briskly without vibration, does not block grass, leaks soil quickly, and has a long service life. The excavation Angle and the lifting Angle of the conveying separation device are designed in the same way to solve the problem of soil accumulation after shoveling. The machine adopts laser cutting machine, precise and beautiful, high concentricity, high precision sealed bearing, anti-wear rubber wheel, never into the soil, long service life of the machine.

---
