Ultrasonic Lace Cutting Machine for Making Ribbons

Product Description

Ultrasonice lace sewimg machine for cutting lace
Model: MS-100 (100mm)

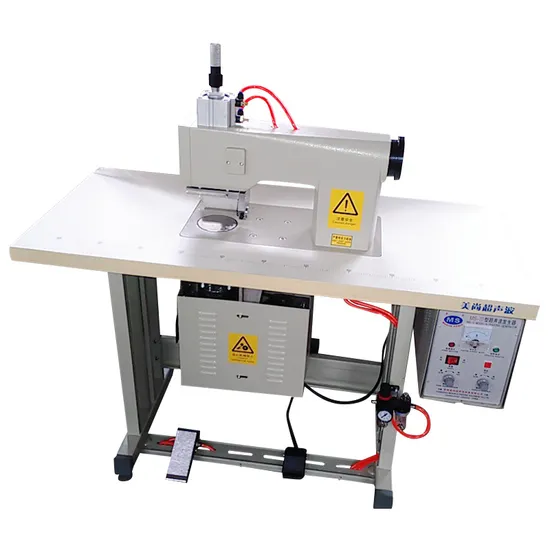

1. Machine and sample pictures:
2. Technical Characteristics:

Names	Specifications
Description	Ultrasonic Lace Sewing Machine
Model	MS-50
Voltage Supply	220V/50Hz/1 Phase/2 Cables
Installed Power	1500W
Ultrasonic Frequency	20KHz
Working Speed	0-16m/min, adjustable as per fabric thickness.
Horn Working Width	70mm maximum
Roller Sizes Suitable	23MMxØ51MM; 50MMxØ51MM; 60MMxØ51MM
Materials Suitable	Polyester, polyester/cotton blend, nylon, leather and non-woven fabrics.
Usages	Making laces, embossing pattern, cutting artificial flowers and sewing non-woven products.
Packing Size	(L)1250mm*(W)605mm*(H)1300mm
Gross Weight	140KGS

3. Functions:
1) The operations of side scraping and trimming
The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
2) Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
3) Transfer printing
Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
4)Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
5) Forming
Press the pattern wheel.
At one time the process of cutting, hole breaking and patter printing can be carried out.
4. Suitable material:
Composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.
5. Application:
Lace clothing, skirt rim, sportswear, pajamas, gown, hair decorations, packaging satin, colored ribbon, tent, raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover, curtain, handkerchief, coloured flag, disposable operating coat, non spin respirator, handicraft, decorations products.

---
