46.7L 150bariso Tped High Pressure Vessel Seamless Steel Industrial Medical Oxygen Gas Cylinder

Product Description

1.Product description

Water Capacity	46.7L
Cylinder Weight	54kg
Outside Diameter	232mm
Service Pressure (Bar)	150bar
Test Pressure(Bar)	250bar
Certification	TPED/ISO9809
Head Protection	Tulip Cap, Common Cap
After-Sales Service Provided	Overseas Third-Party Support Available
Brand Name	YA

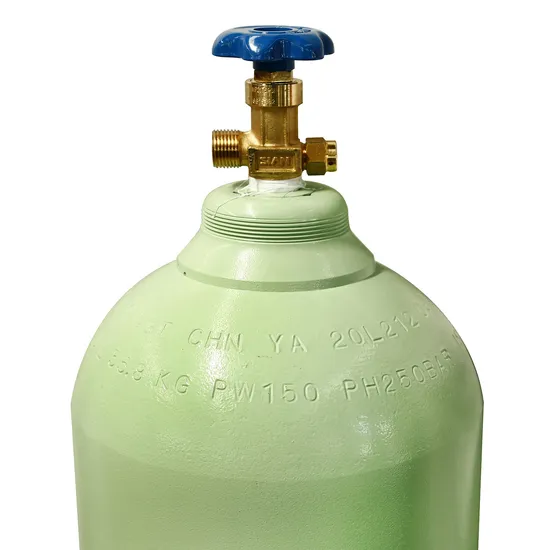

2.Product picture
3.Company Profile
A Company You Can Trust:
Shandong Yongan Special Equipment Co., Ltd. is a professional manufacturer of industrial oxygen cylinders, medical oxygen cylinders, carbon dioxide bottles, argon bottles, nitrogen bottles, hydrogen bottles, sulfur hexafluoride gas cylinders and other gas cylinders.
The company is located in the industrial park of Hedong District, Linyi City, Shandong Province,China. It covers an area of 200 acres and a building area of 56,000 square meters. It currently has more than 1000 employees, including 100 engineering and technical personnel, and certain number of professional and technical personnel who are capable of physical and chemical testing, non-destructive testing, material analysis, and Inspection and test of mechanical properties.
The company 's registered capital is 110 million RMB and fixed assets is 200 million RMB. Depond on the core technology, export access, industry voice and cost control, quality management and other advantages, we can produce 5 million gas cylinders per year, the largest manufacture of gas cylinder in China.
The company has the qualification to produce steel seamless gas cylinders and welded gas cylinders. The products produced have passed the CG5099, ISO9809-1, ISO9809-3 quality certification, and passed the strict certification of TUV, an international authority. Our products have won praise from customers worldwide.
And our product have been exported to Euro Countries, such as Romania, Bulgaria,Russia. South America: such asArgentina, Ecuador, Brazil, Bolivia, Africa: Ethiopia, Ghana, Nigeria, South Africa,Asia: such as Vietnam, Malaysia, Myanmar, India, Saudi Arabia, etc. We are making great efforts to achieve this win-win situation and sincerely welcome to join us.At Last: Welcome all the friends to Visit our company.
Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet the quality requirement of customers. In addition, all of our products have been strictly inspected before shipment. Our products have attained the TPED//ISO/TUV/SGS certification.
4.Advantages we have:
1. Original Manuacturer: MY Company have professional equipments for gas cylinders, medical oxygen regulators, and more than ten years experience in manufactureof gas cylinder
2. Large Output capability: We have the capability to produce more than 5000, 000pcs of Gas Cylinders per year.
3. Cost Advantages: We have cost advantage because our professional and scale economy;
4. Series: We have different series and models, for different standards in different countries;
5. Small order can be acceptable: M. O. Q. =100 PCS;
5.Our Services:
We supply high quqlity with good price gas cylinders.We are prepared for your demand and question at any time. Please feel free to contact me if you have any interest or question about our products.
6.Packaging & Deliver:
Packaging Detail: Packed By Pallets or Netting
Delivery Detail: 25 days
7.FAQ:
1. What is the capacity of this cylinder?
46.7L
2. What is the delivery time?
20-30 Days once deposit paid and spections confirmed.
3. Do you have any protection for the head of the cylinder?
Yes, each cylinder is equiped with a tulip cap OR common cap which can make sure the safety of the product during the transportation.

Type	Outside diameter (mm)	Water capacity (L)	Height (mm)	Weight (kg)	Service pressure (bar)	Test pressure (bar)	Design wall thickness (mm)	Material
ISO232 (TPED)	232	38	1130	45.5	150	250	6.0	37Mn
		40	1180	47.4
		45	1320	52.6
		46	1340	53.3
		47	1370	54.5
		50	1450	57.5
		52	1500	59.3

---
