Opening Milling Machine for Three Inch

Product Description

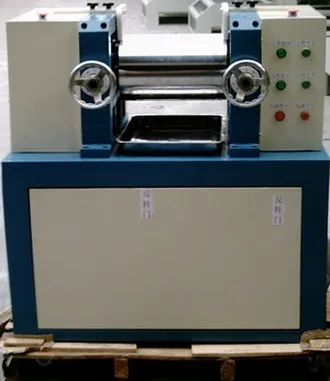

Opening milling machine (3inch)

Parameter	Opening Milling Machine (3inch)
	Cooling type (MWK-76L)	Electric Heating type(MWK-76)
Roller	actual using length≈ 15cm, (φ 76mm× L 150mm)
Ratio	1: 1.16, actual 8.6: 10rev. /min.
Temperature	Normal temperature-tap water	max: normal +10--300 adjustable
Temperature control		Temperature controller is using high precisoin P I D intelligent microcomputer control system , higher precisoin than manual setting; with over-temperature warning function to protect machine and production material
Motor	0.3HP, opening could be adjustable; normal opeing0.2-3mm	0.5HP, opening could be adjustable; normal opeing0.2-3mm
Safety system	brake safety rail, finger touch to stop and revese at some angle; safety rail is on the above of the wheel; emergeny stop rail is supported by spring	brake safety rail, finger touch to stop and revese at some angle; safety rail is on the above of the wheel;
Machine dimension	80*40*50cm	80*40*40cm
Machine weight	within 80kg	within 100kg
Machine structure	Steel plate; ( more light than traditional casting iron, small dimension, high mechanical strength and good toughness )	Roller Stand has security protective cover, refusing sundries enter and avoiding manpower injury. There are two wear-resistant high-temperature profiles at the two ends of roller for the flexible adjusting for width. Any qty of refining rubber could be achieved. Little refining rubber: adjust to the middle/ Much refining rubber: adjust to both sides.
Power	2φ , AC220V, 3A
Power	50W
Motor	Taiwan
Relay	Japan OMRON
Roller material	Japan SKD die steel

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
