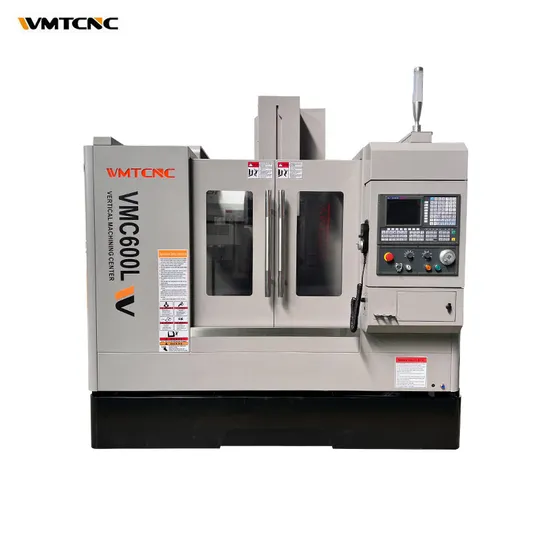

WMTCNC 4 Axis 5 Axis Vertical Milling Machine VMC600L CNC Machining Center Price

Product Description

Product Description
WMT CNC Vertical Machining Center CNC Milling VMC600L Main Features:
1. As one new product of independent design & development, VMC600 is a multi-purpose machine which could mill surface & drill holes.
2. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.
3. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
4. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
5. This machine could process holes below 16mm, milling plane below 18mm and milling depth below 3mm.
Specification for CNC milling machine VMC600L:

Specification	VMC600L
Worktable size(LxW)	800x320mm
T-slot (NxWxD)	3x16x100mm
X/Y/Z axis travel	600/400/450mm
Distance from spindle center to column	450mm
Distance from spindle nose to worktable surface	100-550mm
Spindle taper	BT40
Spindle power	5.5kw
Max.spindle speed	8000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	20/20/18 m/min
X/Y/Z axis ball screw	3210
Tool magazine capacity	12T/16T(optional)
Max.tool length	200mm
Tool change time(T-T)	8s
Positioning accuracy(X/Y/Z)	±0.007mm
Re-positioning accuracy(X/Y/Z)	±0.005mm
Machine size(LxWxH)	1900x1700x2240mm
Max.loading of worktable	300kgs
Machine weight	2800kgs

Guarantee Term:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
