Nc Controlled Single Knife Paper Tube Core Tube Core Cutting Machine

Product Description

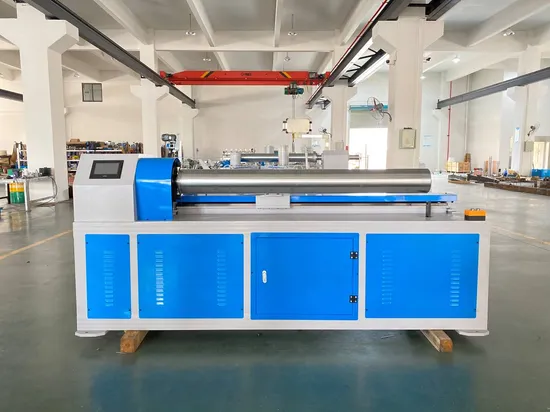

CFQG-SK-150 Precision Paper Tube Core Cutter

Technical Parameter
Inner Diameter	50-152mm
Wall Thickness	1-15mm
Mother Tube Length	1740mm
Cutting Tube Length	5-1700mm
Cutting Blade	Single Circular Blade
Cutting Way	Only Tube Rotates
Cutting Speed	1 pcs/sec.
Cutting Tolerance	±0.15mm
Tube Fixing Way	Automatic Chuck
Tube Loading	Manually
Tube Unloading	Manually
Cutting Type	Pneumatic
Speed Regulation	By Inverter
Operator	1 person
Working Air Pressure	0.6Mpa
Power Supply	380V / 3 Phase / 50Hz (customizable)

Measurement & Weight
Measurement	2500*650*1220mm
Weight	900kgs
Enclosed Spare Parts
Mandrel Shaft	2 pieces
Blades (Tungsten Steel)	5 pieces
Tool	1 set

Servo motor controlled High Precision cutting system Min. cutting length 5mm and tolerance ± 0.15mm change core diameter: only need to change mandrel shaft (mold) change cutting length: set cutting length on touch screen; no need to adjust cutting knife. Clamping Nail for fixing the paper core
Only paper rotates during cutting; blade and shaft are fixed
Finished Cores
Packing Method : Fumigation-free Wooden Case
Company Profile
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has 15+ years' experience on paper tube & core machines manufacturing and 7+ years on paper straw machines manufacturing.
Main products are below:
-- Paper straws making machine
-- Paper tube & core making machine
-- Paper tube & core cutting machine
-- Jumbo paper slitting rewinding machine
-- Related machines
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan, Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan,USA, Mexico, Colombia, Ecuador etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
