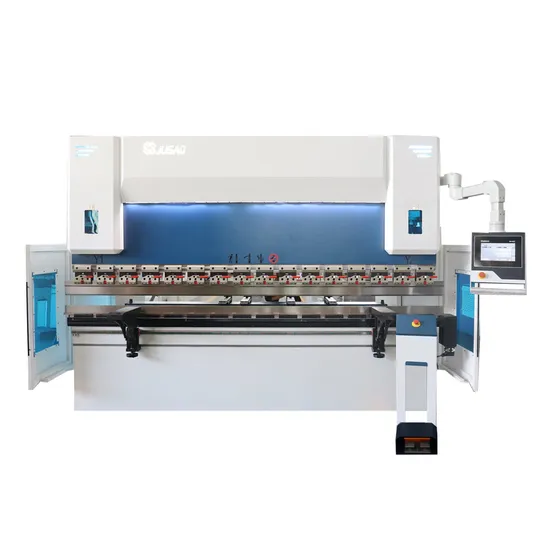

Hydraulic Steel Plate Press Brake Bending Machine 3+1 Axes Steel Plate Folding Machine

Product Description

Hydraulic Steel Plate Press Brake Bending Machine 3+1 Axes Steel Plate Folding Machine
The new compact DA-53T adds a state-of-the-art complete touch control solution for synchronized press brakes. Offering easiest CNC programming based on the Delem graphical touch screen user interface. This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing. Its 10.1" wide screen high resolution colour TFT, with industrial grade multi touch technology, gives access to the proven Delem user-interface. It enables direct "hot-key" touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application.
1. Multi-language CNC operating system
2. Silent and reliable internal gear pump
3. Hydraulic system regulated by proportional valves
4. Combination of brushless drive and motor with "can open" digital technology, high precision backgauge which permits permits fast movements of the axes.
5. High precision optical lines
6. Adjustable clampings
7. Hardened, grinded tools and clamps for quick tools adjustment
8. Complete backgauge fingers on double linear guide
9. Stainless steel front supports adjustable in height
10. Automatic mechanical crowning
11. Electrical panel with high quality components
12. European safety standards Start&Stop system
The DA-53T touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality.
1. 10.1" high resolution colour TFT
2. "Hot-key" touch navigation
3. Up to 4 axes (Y1,Y2 + 2 aux. axes)
4. Tool / material / product library
5. Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
6. CNC Crowning control
7. USB memory stick interfacing
8. Profile-53TL offline software
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
