High-Precision Zmde CNC Drilling Machine for H and U Beams

Product Description

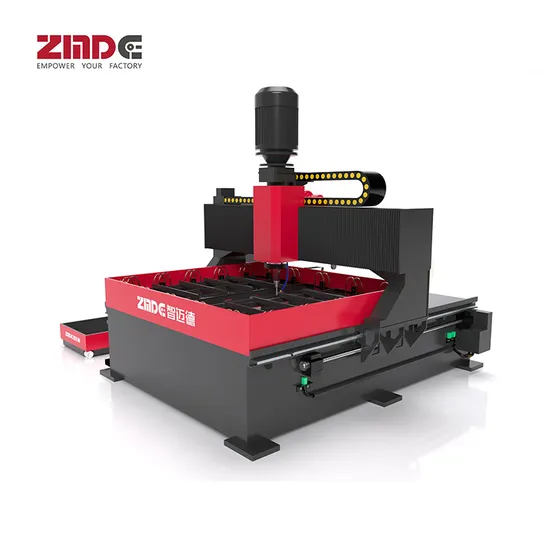

ZMDE CNC Drilling Machine for H Beams U Beams Drilling Line

>Cost-effective Investment <
1. Built with robust materials and featuring a remarkably low failure rate, this equipment minimizes maintenance costs. All critical components, including ball screws, linear guides, hydraulic parts, electrical elements, servo motors, and frequency converters, are sourced from industry-leading brands.
2. The CRT display offers automatic chip removal capabilities, significantly reducing the need for manual cleaning and saving valuable time.
3. Enjoy high precision and exceptional workpiece qualification rates, minimizing the expenditure on consumables.
>Effortless Operation, Superior Productivity <
1. The intuitive human-machine interface makes programming automatic machining processes clear and visually accessible.
2. CNC and PLC controls ensure precise positioning for optimal results.
3. Workpieces are securely clamped with hydraulic clamps, and operators can easily manage the process with a convenient foot switch.
4. Featuring 12 rapid hydraulic clamps distributed around the table, the system can clamp four groups of workpieces simultaneously.
5. Small workpieces can be strategically clamped at the four corners of the working table, dramatically shortening the production preparation cycle and enhancing efficiency.
6. Clamping small workpieces at the table corners drastically reduces the production preparation period while boosting overall efficiency.
> Assured Quality, Extensive Application Range <
1. Key components like the gantry, column, and table are constructed from solid materials, with the main machine weighing up to 6300kg.
2. Suitable for a wide array of industries, this is essential equipment for connecting plate processing.
3. Accommodates a broad range of drilling diameters, from 12mm to 50mm.
> Ideal for Diverse Production Environments <
1. Capable of continuous production for multiple batches of single flat-type workpieces.
2. Efficiently handles small batch productions of multi-species workpieces, accommodating plates of various shapes, such as rectangular, round flanges, and polygons; it can process up to four different specifications simultaneously.
3. Can stack and drill multiple layers of thinner sheets up to a maximum thickness of 100mm.
4. The upper computer software automates the process, enabling both through-holes and blind holes, step holes, and hole-end chamfering.
> Automated Production Process <
1. Integrated line board design ensures a high degree of automation with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feeding volume according to different hole diameters.
3. Enables the automated and continuous processing of large hole diameters, completing them in a single operation.
4. Comes equipped with a reliable automatic chip removal function.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
